- Climax C200M-240x305
C200M-240x305

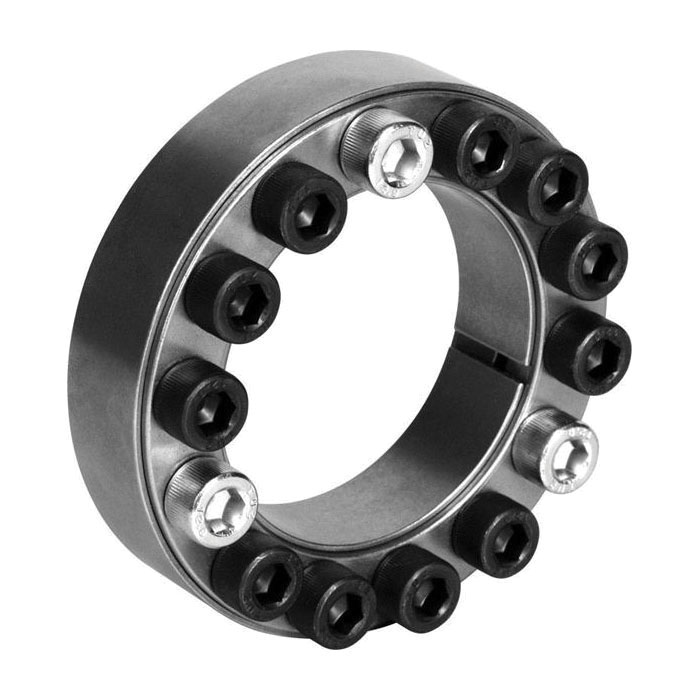

Climax C200M-240x305 C200 Keyless Locking Assembly, 240 mm Dia Bore, 305 mm OD, 21.975 in Dia Hub, 12.008 in OAL, Steel
- CP#:
- Item#: C200M-240X305
- Mfr#: C200M-240x305
- UPC: 044861087695
- Double-taper, non-self-centering design for use in counter-bored components
- Mounted component remains fixed axially during installation
- Locking assemblies install as bushings between the shaft and the component bore, creating a high pressure mechanical interference fit
- As the annular high-strength screws are tightened, internal tapers simultaneously apply radial force on the shaft and the component bore
- No key means infinite radial and axial positioning for precise alignment and timing
- Self-locking tapers on most designs mean the connection will not loosen under dynamic loading, even high shock, reversing or vibration
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Climax Series C200 in a machined counter bore transmits torque in a spur gear. Use of Keyless Locking Devices in lieu of long press fits facilitates installation and removal with simple hand tools, both in a production environment and in the field.
Climax Keyless Locking Assembly, Series: C200, 240 mm Bore Dia, 305 mm Outside Dia, 21.975 in Hub Dia, 85275 ft-lb Transmissible Torque, 216598 lbf Transmissible Thrust, 30889 psi Shaft Contact Pressure, 24306 psi Hub Contact, M16x50 Screw, 12.008 in Overall Length, 0 to 400 deg F, Steel
SPECIFICATIONS

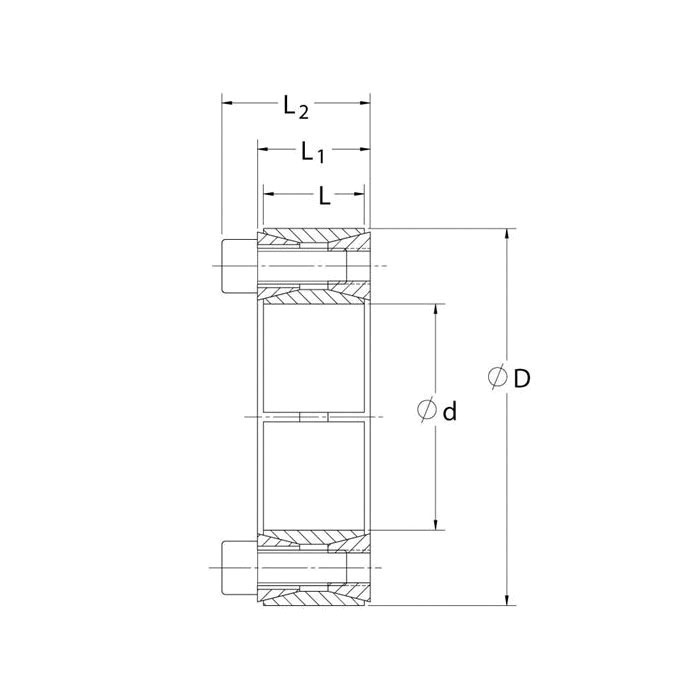

| Series | : | C200 |
| Bore Diameter | : | 240 mm |
| Outside Diameter | : | 305 mm |
| Overall Length | : | 12.008 in |
| Material | : | Steel |
| Hub Contact Pressure | : | 24306 psi |
| Temperature Rating | : | 0 to 400 deg F |
| Shaft Contact Pressure | : | 30889 psi |
| Screw Size | : | M16x50 |
| Transmissible Thrust | : | 216598 lbf |
| Transmissible Torque | : | 85275 ft-lb |
| Hub Diameter | : | 21.975 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C200E_075_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C200M_240x305_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C600E_062_Catalog.pdf -
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C600E_062_Technical_Bulletin.pdf -
