- Climax C133M-50x80
C133M-50x80

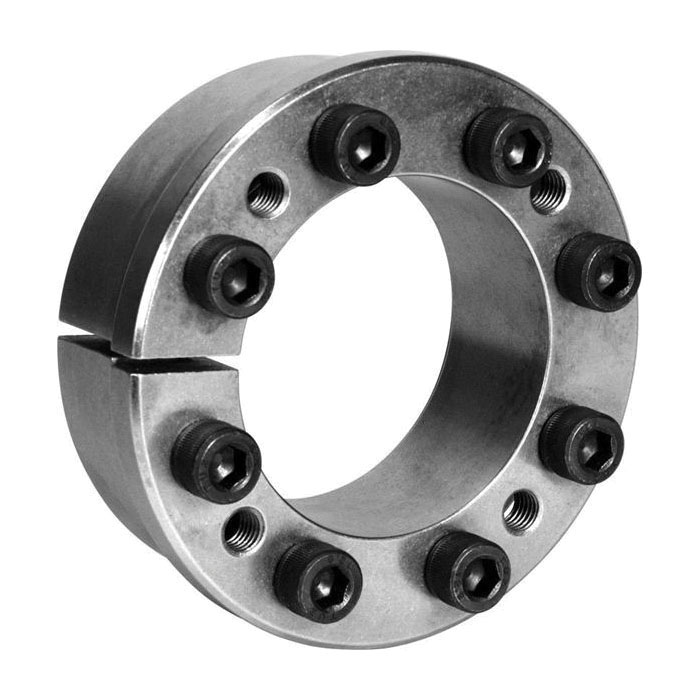

Climax C133M-50x80 C133 Keyless Locking Assembly, 50 mm Dia Bore, 80 mm OD, 4.728 in Dia Hub, 1.673 in OAL, Steel
- CP#:
- Item#: C133M-50X80
- Mfr#: C133M-50x80
- UPC: 044861075456
- Single-taper, self-centering design with mounting flange for use in through-bored components
- Mounted component remains fixed axially during installation
- Locking assemblies install as bushings between the shaft and the component bore, creating a high pressure mechanical interference fit
- As the annular high-strength screws are tightened, internal tapers simultaneously apply radial force on the shaft and the component bore
- No key means infinite radial and axial positioning for precise alignment and timing
- Self-locking tapers on most designs mean the connection will not loosen under dynamic loading, even high shock, reversing or vibration
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Climax Series C133 connects a lever arm onto plain shafting. KLDs provide infinite radial and axial positioning capabilities for component timing, belt or chain alignment, setting gear tooth backlash and more.
Climax Keyless Locking Assembly, Series: C133, 50 mm Bore Dia, 80 mm Outside Dia, 4.728 in Hub Dia, 1329 ft-lb Transmissible Torque, 16206 lbf Transmissible Thrust, 27733 psi Shaft Contact Pressure, 17333 psi Hub Contact, M8x25 Screw, 1.673 in Overall Length, 0 to 400 deg F, Steel
SPECIFICATIONS

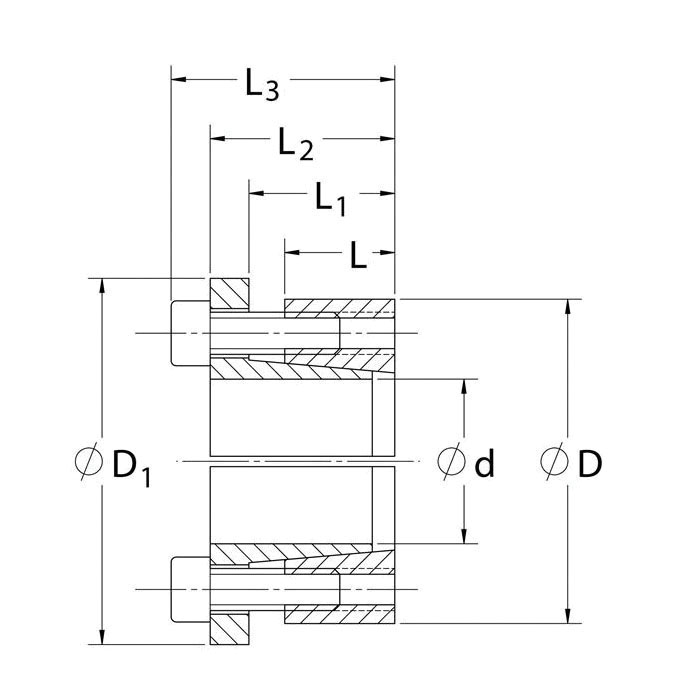

| Series | : | C133 |
| Bore Diameter | : | 50 mm |
| Outside Diameter | : | 80 mm |
| Overall Length | : | 1.673 in |
| Material | : | Steel |
| Hub Contact Pressure | : | 17333 psi |
| Temperature Rating | : | 0 to 400 deg F |
| Shaft Contact Pressure | : | 27733 psi |
| Screw Size | : | M8x25 |
| Transmissible Thrust | : | 16206 lbf |
| Transmissible Torque | : | 1329 ft-lb |
| Hub Diameter | : | 4.728 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C123E_075_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C133M_50x80_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C600E_062_Catalog.pdf -
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C600E_062_Technical_Bulletin.pdf -
VIDEO LINK
https://youtu.be/LuLczlLpHmc
VIDEOS
