- Climax C133E-375
C133E-375

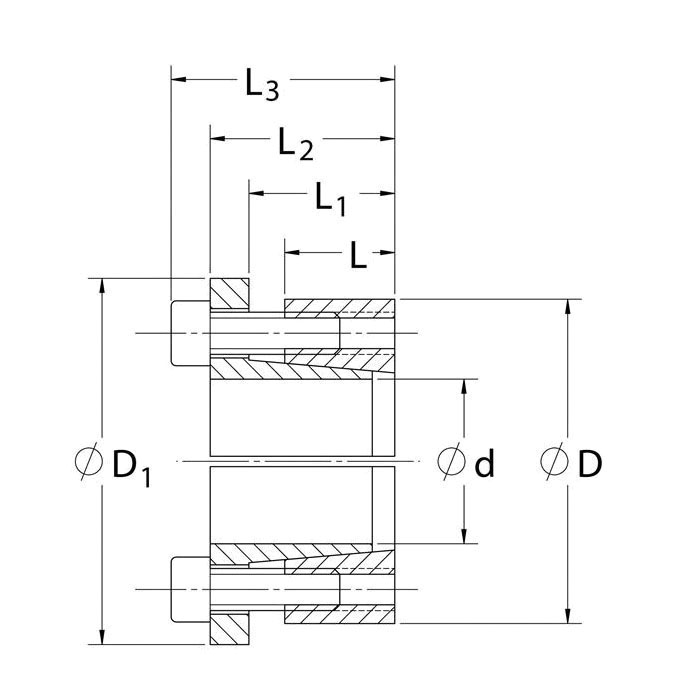

Climax C133E-375 C133 Keyless Locking Assembly, 3-3/4 in Dia Bore, 5.669 in OD, 8.588 in Dia Hub, 1.988 in OAL, Steel
- CP#:
- Item#: C133E-375
- Mfr#: C133E-375
- UPC: 044861074855
- Single-taper, self-centering design with mounting flange for use in through-bored components
- Mounted component remains fixed axially during installation
- Locking assemblies install as bushings between the shaft and the component bore, creating a high pressure mechanical interference fit
- As the annular high-strength screws are tightened, internal tapers simultaneously apply radial force on the shaft and the component bore
- No key means infinite radial and axial positioning for precise alignment and timing
- Self-locking tapers on most designs mean the connection will not loosen under dynamic loading, even high shock, reversing or vibration
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Climax Series C133 connects a lever arm onto plain shafting. KLDs provide infinite radial and axial positioning capabilities for component timing, belt or chain alignment, setting gear tooth backlash and more.
Climax Keyless Locking Assembly, Series: C133, 3-3/4 in Bore Dia, 5.669 in Outside Dia, 8.588 in Hub Dia, 5938 ft-lb Transmissible Torque, 38004 lbf Transmissible Thrust, 28450 psi Shaft Contact Pressure, 20073 psi Hub Contact, M10x30 Screw, 1.988 in Overall Length, 0 to 400 deg F, Steel
SPECIFICATIONS
| Series | : | C133 |
| Bore Diameter | : | 3-3/4 in |
| Outside Diameter | : | 5.669 in |
| Overall Length | : | 1.988 in |
| Material | : | Steel |
| Hub Contact Pressure | : | 20073 psi |
| Temperature Rating | : | 0 to 400 deg F |
| Shaft Contact Pressure | : | 28450 psi |
| Screw Size | : | M10x30 |
| Transmissible Thrust | : | 38004 lbf |
| Transmissible Torque | : | 5938 ft-lb |
| Hub Diameter | : | 8.588 in |
