CDI Torque Products®
3504LDFNSS

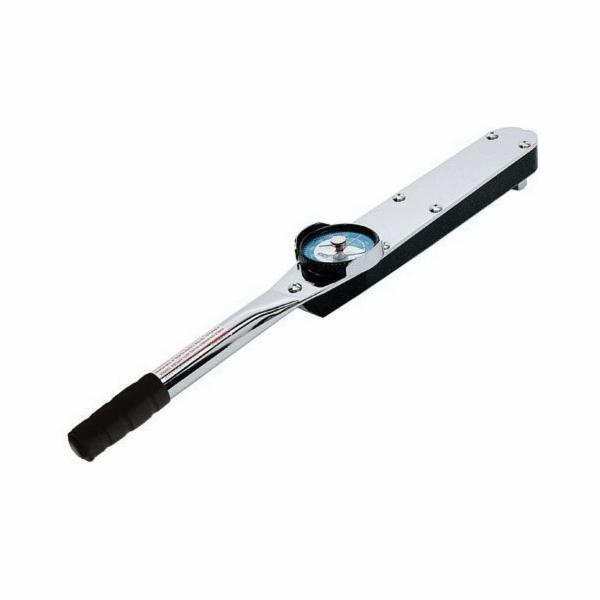

CDI Torque Products® 3504LDFNSS Single Scale Memory Needle Model Dial Torque Wrench, 3/4 in Drive, Fixed Head, 0 to 350 ft-lb, 10 ft-lb, 28 in OAL
- Item#: 3504LDFNSS
- Mfr#: 3504LDFNSS
- UPC: 662459262455
- Sturdy body construction insures maximum durability
- Easy to read laser marked single scale
- Large easy to read dial is shock resistant and protected by a tough metal guard
- Memory needle retains highest torque reading applied
- Calibrated in both CW and CCW direction
- Accuracy: +/-4% of indicated value, CW and CCW from 20 to 100% of full scale
- Individually serialized with matching certificate of calibration traceable to NIST
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dial torque wrenches are designed for the automotive, nuclear and industrial markets in addition to military installations throughout the world. This series features sturdy torsion beam design for dependable long life and accuracy. The small frame model offers working ranges from 3 in-lb to 50 ft-lb in 1/4 in and 3/8 in drives. The large frame model continues from 100 ft-lb through 2000 ft-lb with 1/2 in, 3/4 in and 1 in drives. Accuracy of both series of +/-3% meets or exceeds ASME standards, ISO 6789 bi-directionally from 20% to 100% of scale. All wrenches supplied with a NIST Traceable certificate of calibration.
CDI Torque Products® Dial Torque Wrench, Single Scale Memory Needle Model, 3/4 in Drive, 0 to 350 ft-lb Torque, Fixed Head, Graduations: 10 ft-lb, 28 in Overall Length, CW/CCW Rotation, +/-4% Accuracy, 5000 Cycles Minimum, Specifications Met: ASME Specified, Rubber Grip/Steel
SPECIFICATIONS
| Accuracy | : | +/-4% |
| Material | : | Rubber Grip/Steel |
| Minimum Number of Cycles | : | 5000 |
| Rotation Type | : | CW/CCW |
| Type | : | Single Scale Memory Needle Model |
| Drive Size | : | 3/4 in |
| Torque Range | : | 0 to 350 ft-lb |
| Head Type | : | Fixed |
| Overall Length | : | 28 in |
| Specifications Met | : | ASME Specified |
| Graduations | : | 10 ft-lb |
