BVA Hydraulics PA7550
BVA Hydraulics

BVA Hydraulics PA7550

loading
BVA Hydraulics
Email Print

PA7550

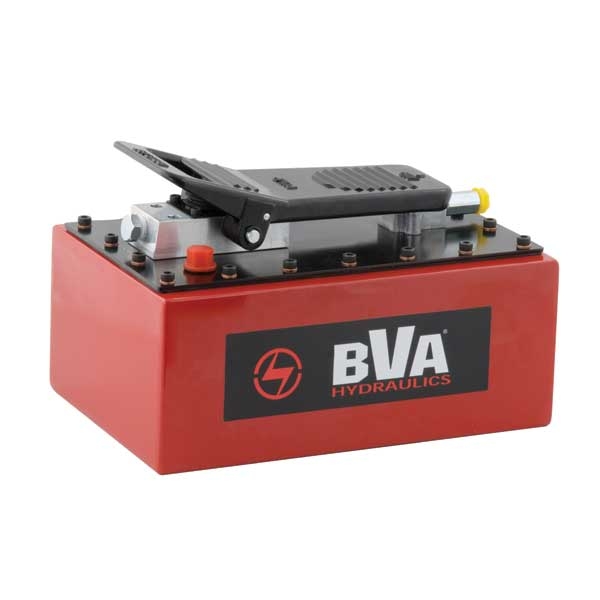

TREADLE AIR PUMP, 460.6 CU. IN. USABLE OIL - 10,000 PSI

  • Item#: PA7550
  • Mfr#: PA7550
  • UPC: 047077800034
  • Heavy duty metal reservoirs superior to plastic counterparts
  • Patented bypass device protects the hydraulic system from over pumping damage
  • A compact yet powerful Air Turbo Motor
  • Patented in-line design provides less friction and longer life
  • Unique dust cover on release control valve protects against contaminants
  • Detent locking feature on pedal for optional continuous operation
  • Suggested air inlet range: 110-175psi / 7.6-12.1 bar
  • Will hold hydraulic pressure if air is disconnected
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

BVA Hydraulic air pump works at max. 10,000 psi (700 bar), with a compact yet powerful air turbo motor, will hold hydraulic pressure if air is disconnected. The pump equips patented bypass device protects the hydraulic system from over pumping damage, and in-line design gives less friction & longer life. Our unique dust cover on release control valve protects against contaminations. As heavy duty metal reservoirs is superior to plastic counterparts. Suggested air inlet range: 110-175 psi / 7.6-12.1 bar

SPECIFICATIONS

Oil Capacity      :      460.6 cu-in
Capacity      :      10000 psi
