YCS10P100

Browning® 1220110 Type 16 Spur Gear With Type P1 Split Taper® Bushing, 10 Diametral Pitch, 20 deg Pressure Angle, 1-1/4 in W Face, 100 Teeth, 10 in Dia Pitch, 1/2 to 1-3/4 in Dia Bore, Cast Iron

  • Item#: YCS10P100-P01
  • Mfr#: YCS10P100
    • Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
    • Browning® bushed gears hold the shaft with clamp fit and eliminate costly reworking on replacement gears
    • Less expensive
    • Without hardened teeth
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

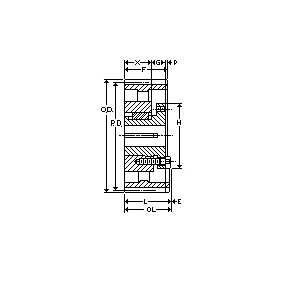

Browning® Spur Gear, Type 16, 1/2 to 1-3/4 in Bore, 10.2 in OD, 100 Teeth, 10 Diametral Pitch, 10 in Pitch Diameter, 1-1/4 in Face Width, 3 in Diameter Hub, 11/16 in Hub Projection, 2-3/16 in Overall Length, 20 deg Pressure Angle, 1/4 x 1/8, 3/16 x 3/32, 3/8 x 3/16, 5/16 x 5/32, 1/8 x 1/16 in Keyway, Cast Iron

SPECIFICATIONS

Hub Diameter      :      3 in
Hub Projection      :      11/16 in
Keyway Size      :      1/4 x 1/8, 3/16 x 3/32, 3/8 x 3/16, 5/16 x 5/32, 1/8 x 1/16 in
Outside Diameter      :      10.2 in
Overall Length      :      2-3/16 in
Type      :      Type 16
Diametral Pitch      :      10
Pressure Angle      :      20 deg
Face Width      :      1-1/4 in
Number of Teeth      :      100
Pitch Diameter      :      10 in
Bore Diameter      :      1/2 to 1-3/4 in
Material      :      Cast Iron
