VPB-218 AH

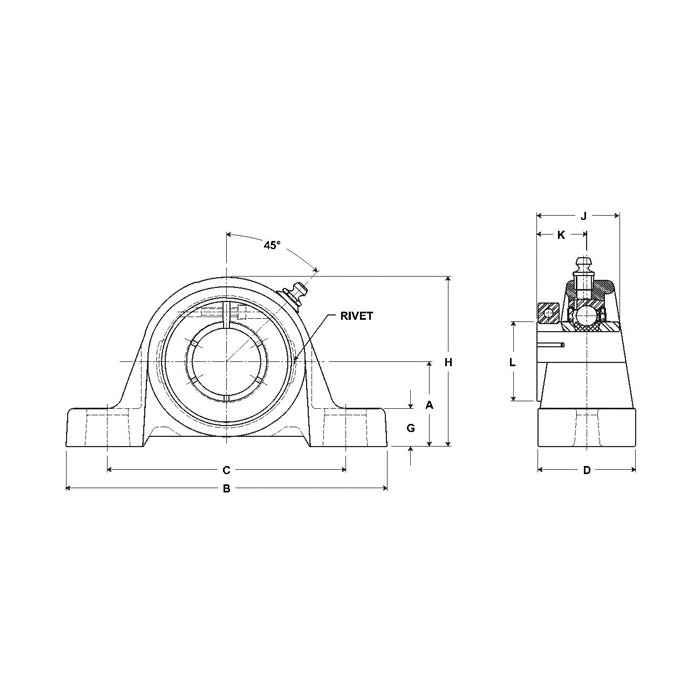

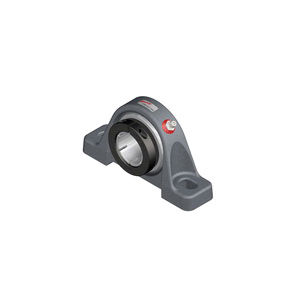

Browning® 764248 VPB 200 Normal Duty High Base Pillow Block Ball Bearing Unit, 1-1/8 in Dia Bore, 4-3/16 to 5-1/16 in L Bolt Center-to-Center, 1-11/16 in Base to Bore Centerline, 6-3/16 in OAL x 3-9/32 in OAH
- CP#:
- Item#: VPB-218 AH-P01
- Mfr#: VPB-218 AH
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron rugged base design provides an excellent mounting foundation
- Zone hardened inner race
- BOA is a concentric locking collar clamp design that results in near-perfect concentricity of the shaft to the bearing bore
- Air handling ball bearings are manufactured with a controlled housing fit that allows the bearing to properly self-align when mounted on lightweight frames commonly found on air handling equipment
- Nylon retainer
- 52100 steel insert
- Alemite fitting lubrication
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
Browning® Pillow Block Ball Bearing Unit, Normal Duty High Base, Series: VPB 200, 1-1/8 in Bore, 4-3/16 to 5-1/16 in Bolt Center-to-Center Length, 1-11/16 in Base to Bore Centerline, 6-3/16 in Overall Length, 3-9/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-3/4 in Base Width, BOA Concentric Locking Device, Single Lip Contact with Flinger Seal, Non-Expansion (Fixed) Expansion, 4381 lb Dynamic/2567 lb Static Load, 200 to 250 deg F, 4500 rpm Maximum, Cast Iron, Gray Painted
SPECIFICATIONS
| Base Width | : | 1-3/4 in |
| Base to Bore Centerline | : | 1-11/16 in |
| Series | : | VPB 200 |
| Bolt Center-to-Center Length | : | 4-3/16 to 5-1/16 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | BOA Concentric |
| Finish | : | Gray Painted |
| Overall Length | : | 6-3/16 in |
| Load Capacity | : | 4381 lb Dynamic/2567 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 4500 rpm |
| Inside Diameter | : | 1-1/8 in |
| Mounted | : | Yes |
| Overall Height | : | 3-9/32 in |
| Seal Type | : | Single Lip Contact with Flinger |
