VFCS-319

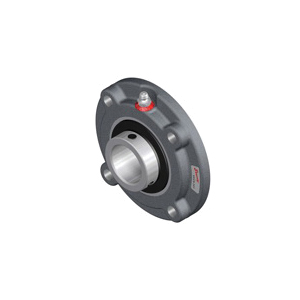

Browning® 767858 VFCS 300 Non-Expansion Medium Duty Round/Straight Bore Ball Bearing Cartridge Unit With Seal Flinger, 1-3/16 in Dia Bore, 4-1/8 in Dia Bolt Circle, 4-Bolt Flange Mount, 5 in OAL/Dia
- CP#:
- Item#: VFCS-319-P01
- Mfr#: VFCS-319
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron base
- Zone hardened inner race
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- Nylon retainer
- 52100 black oxide coated insert
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
Browning® Ball Bearing Cartridge Unit, Non-Expansion Medium Duty Round/Straight Bore, Series: VFCS 300, 1-3/16 in Bore, 4-1/8 in Diameter Bolt Circle, 4-Bolt Flange Mounting, 5 in Overall Length/Diameter, 1-11/16 in Overall Depth, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 4381 lb Dynamic/2567 lb Static Load, 4000 rpm Maximum, 200 deg F
SPECIFICATIONS
| Series | : | VFCS 300 |
| Bolt Circle Diameter | : | 4-1/8 in |
| Bearing Material | : | Steel |
| Flange Mounting Type | : | 4-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 4381 lb Dynamic/2567 lb Static |
| Maximum Speed | : | 4000 rpm |
| Overall Depth | : | 1-11/16 in |
| Inside Diameter | : | 1-3/16 in |
| Overall Length/Diameter | : | 5 in |
| Mounted | : | Yes |
| Seal Material | : | Nitrile Rubber |
