VF4S-215

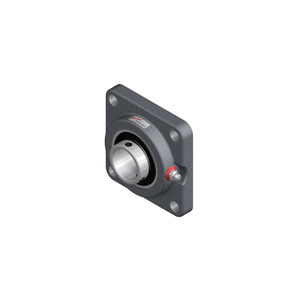

Browning® 767925 VF4S 200 Non-Expansion Normal Duty Round/Straight Bore Ball Bearing Unit, 15/16 in Dia Bore, 2-3/4 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 3-3/4 in OAL/Dia
- CP#:
- Item#: VF4S-215-P01
- Mfr#: VF4S-215
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron base
- Zone hardened inner race
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- Nylon retainer
- 52100 bearing insert
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
Browning® Ball Bearing Unit, Non-Expansion Normal Duty Round/Straight Bore, Series: VF4S 200, 15/16 in Bore, 2-3/4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-7/16 in Overall Depth, 3-3/4 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 2801 lb Dynamic/1651 lb Static Load, 5500 rpm Maximum, 200 deg F, Gray Painted
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 2-3/4 in |
| Series | : | VF4S 200 |
| Bearing Material | : | Steel |
| Finish | : | Gray Painted |
| Flange Mounting Type | : | 4-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 2801 lb Dynamic/1651 lb Static |
| Maximum Speed | : | 5500 rpm |
| Overall Depth | : | 1-7/16 in |
| Overall Height | : | 3-3/4 in |
| Inside Diameter | : | 15/16 in |
| Overall Length/Diameter | : | 3-3/4 in |
| Mounted | : | Yes |
| Seal Material | : | Nitrile Rubber |
