VF4E-132S

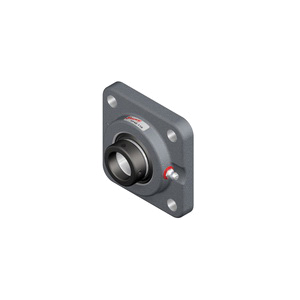

Browning® 767331 VF4E 100 Non-Expansion Intermediate Duty Round/Straight Bore Ball Bearing Unit, 2 in Dia Bore, 4-3/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 5-5/8 in OAL/Dia
- CP#:
- Item#: VF4E-132S-P01
- Mfr#: VF4E-132S
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron base
- Zone hardened inner race
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Nylon retainer
- 52100 bearing insert
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
Browning® Ball Bearing Unit, Non-Expansion Intermediate Duty Round/Straight Bore, Series: VF4E 100, 2 in Bore, 4-3/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-5/8 in Overall Length/Diameter, 2-5/32 in Overall Depth, 5-5/8 in Overall Height, Eccentric Locking Device, Steel Bearing, Nitrile Rubber Seal, 7889 lb Dynamic/5216 lb Static Load, 2000 rpm Maximum, 200 deg F, Gray Painted
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4-3/8 in |
| Series | : | VF4E 100 |
| Bearing Material | : | Steel |
| Finish | : | Gray Painted |
| Flange Mounting Type | : | 4-Bolt |
| Locking Device | : | Eccentric |
| Load Capacity | : | 7889 lb Dynamic/5216 lb Static |
| Maximum Speed | : | 2000 rpm |
| Overall Depth | : | 2-5/32 in |
| Overall Height | : | 5-5/8 in |
| Inside Diameter | : | 2 in |
| Overall Length/Diameter | : | 5-5/8 in |
| Mounted | : | Yes |
| Seal Material | : | Nitrile Rubber |
