Browning® VE-231
Browning®

Browning® VE-231

loading
Browning® VE-231
Browning®
Email Print

VE-231

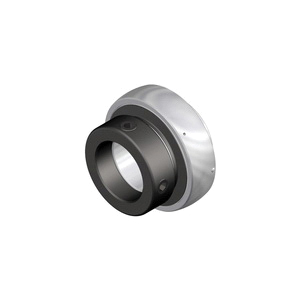

Browning® 767983 VE Series Standard-Duty Straight Bore Ball Bearing Insert With Seal Flinger, 1.938 in Dia Bore, 3.543 in OD, 2.469 in W, 7889 lb Dynamic/5216 lb Static Load

  • Item#: VE-231-P01
  • Mfr#: VE-231
    • Eccentric locking device
    • Contact seal
    • Thru hardened inner race heat treat method
    • Lithium complex NLGI #2 grease with an EP additive
    • Spherical outer diameter
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Ball Bearing Insert, Standard-Duty Straight Bore, Series: VE Series, 1.938 in Bore, 3.543 in OD, 2.469 in Width, Double Seal Closure, 7889 lb Dynamic/5216 lb Static Load, Steel Bearing, Plastic Cage, 3000 rpm Maximum, -20 to 200 deg F, Black Oxide Coated

SPECIFICATIONS

Series      :      VE Series
Bearing Material      :      Steel
Closure Type      :      Double Seal
Finish      :      Black Oxide Coated
Load Capacity      :      7889 lb Dynamic/5216 lb Static
Maximum Speed      :      3000 rpm
Outside Diameter      :      3.543 in
Inside Diameter      :      1.938 in
Mounted      :      Yes
Width      :      2.469 in
