Browning® VB-223
Browning®

Browning® VB-223

loading
Browning® VB-223
Browning®
Email Print

VB-223

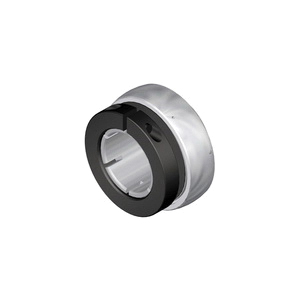

Browning® 764032 VB 200 Standard Duty Straight Bore Ball Bearing Insert With Seal Flinger, 1.438 in Dia Bore, 2.835 in OD, 1-3/4 in W, 5782 lb Dynamic/3493 lb Static Load

  • Item#: VB-223-P01
  • Mfr#: VB-223
    • BOA concentric collar locking
    • Single lip contact seal
    • Zone hardened inner race
    • Lithium complex NLGI #2 grease with an EP additive
    • Spherical outer diameter
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Ball Bearing Insert, Standard Duty Straight Bore, Series: VB 200, 1.438 in Bore, 2.835 in OD, 1-3/4 in Width, Double Seal Closure, 5782 lb Dynamic/3493 lb Static Load, Steel Bearing, Plastic Cage, 4000 rpm Maximum, -20 to 200 deg F, Black Oxide Coated

SPECIFICATIONS

Series      :      VB 200
Bearing Material      :      Steel
Closure Type      :      Double Seal
Finish      :      Black Oxide Coated
Load Capacity      :      5782 lb Dynamic/3493 lb Static
Maximum Speed      :      4000 rpm
Outside Diameter      :      2.835 in
Inside Diameter      :      1.438 in
Mounted      :      Yes
Width      :      1-3/4 in
