Browning® RUBRS-108
Browning®

Browning® RUBRS-108

loading
Browning® RUBRS-108
Browning®
Email Print

RUBRS-108

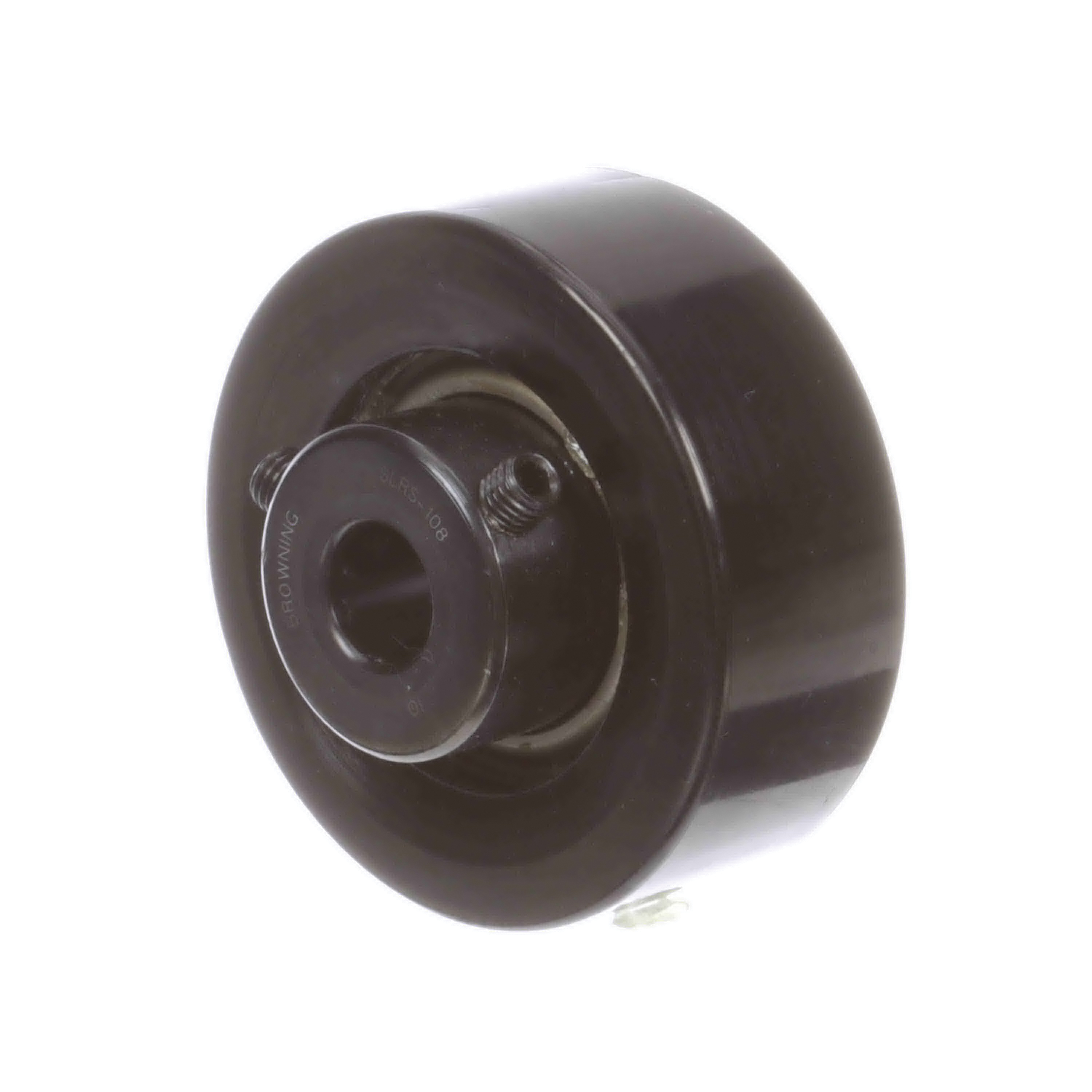

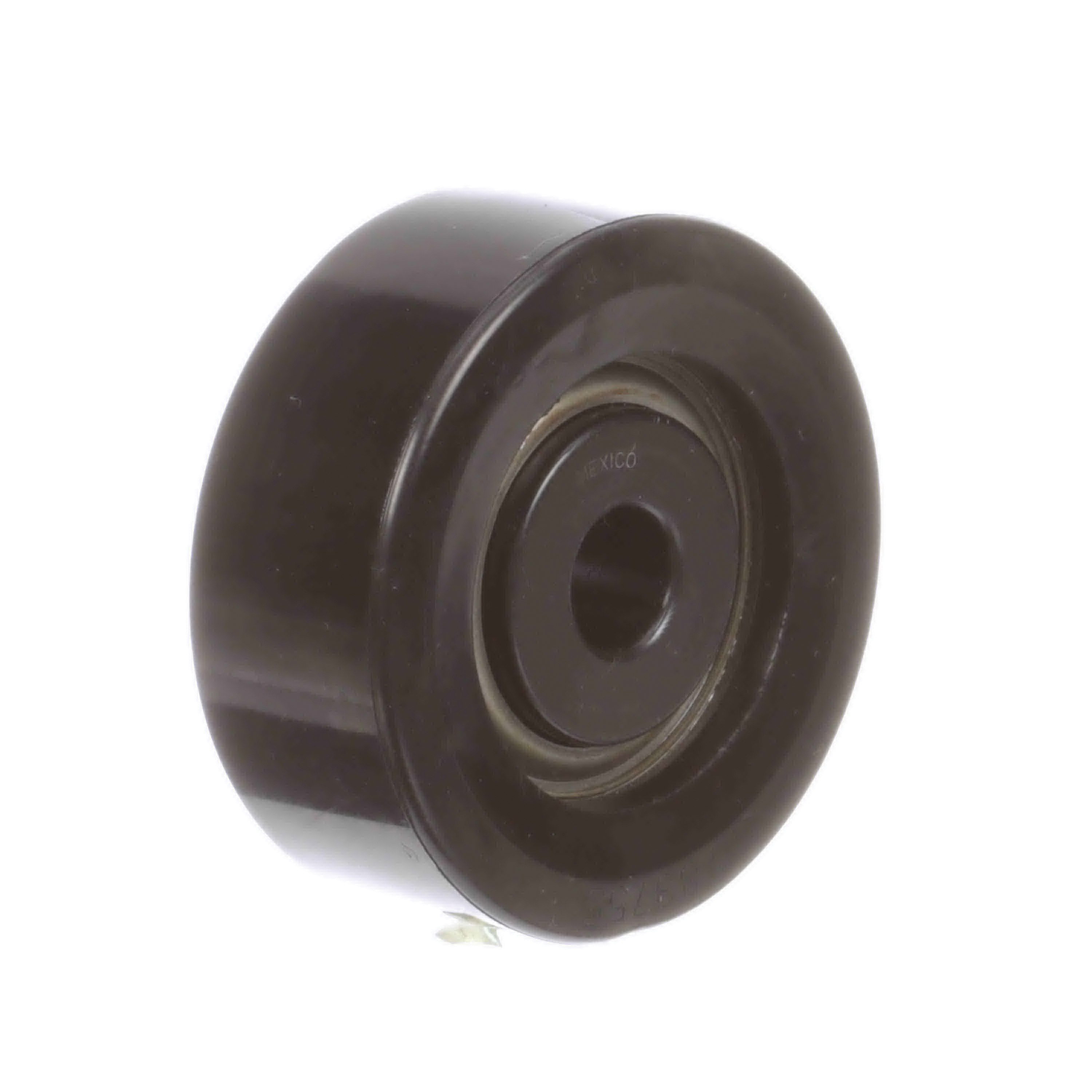

Browning® 766549 RUBRS 100 1-Piece Light Duty Non-Expansion Straight Bore Cylindrical Cartridge Ball Bearing, 1/2 in Dia Bore, 2.531 in OD, 1-9/32 in W, 52100 Steel Bearing

  • Item#: RUBRS-108-P01
  • Mfr#: RUBRS-108
    • Cylindrical outer diameter rubber grommeted bearing
    • Zone hardened inner ring with 120 deg spacing set screw locking with diamond faceted set screws
    • Single lip contact seal
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Browning® Cylindrical Cartridge Ball Bearing, 1-Piece Light Duty Non-Expansion Straight Bore, Series: RUBRS 100, 1/2 in Bore Dia, 2.531 in Outside Dia, 1-9/32 in Width, 250 lb Static, 52100 Steel Bearing, Rubber Cage, 5000 rpm Maximum, 200 deg F, Uncoated

SPECIFICATIONS

Series      :      RUBRS 100
Bearing Material      :      52100 Steel
Finish      :      Uncoated
Load Capacity      :      250 lb Static
Maximum Speed      :      5000 rpm
Outside Diameter      :      2.531 in
Inside Diameter      :      1/2 in
Width      :      1-9/32 in
Mounted      :      Yes
