PE0032

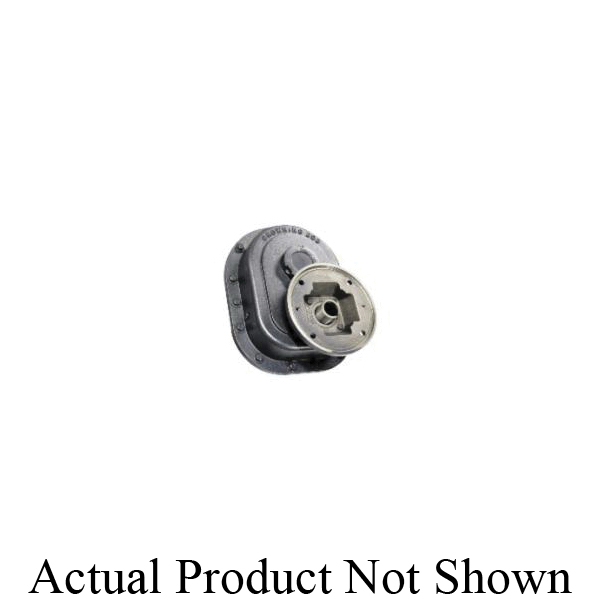

Browning® TorqTaper® Plus PE0032 Double Reduction Type CMTP Shaft Mount Reducer, C-Face Quilled Input, Tapered Bore Output, 1 hp, 35:1 Gear Ratio, 50 rpm Maximum Output, 36.013 in-lb Input/1260.48 in-lb Output Torque Rating
- CP#:
- Item#: 207CMTP35 Q210-P01
- Mfr#: PE0032
- UPC: 662460541518
- Exclusive taper bushing, single TorqTaper® bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
- Eliminate belt guards, belt drives and motor mounts
- Combine with intelligear for variable speed control
- Metal key, provides positive torque transmission
- Non metallic quill liner, eliminates fretting and allows for easier motor removal
- Bearing supported quill input, minimizes shaft wobble and increases seal life
- Q210 quill motor mounting style
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Shaft mount reducers are enclosed helical gear reducers with a hollow output. They are mounted directly on the input shaft of the driven machine and are supported by the shaft and torque arm arrangement or motor mount frame. This eliminates the need for additional components to transmit torque from the reducer to the equipment.
Browning® TorqTaper® Plus Shaft Mount Reducer, Double Reduction Type CMTP, 35:1 Gear Ratio, 1 hp, C-Face Quilled Input, Tapered Bore Output, 1.38 in Input, 2-7/16 in Output, 50 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/1260.48 in-lb Output, 6.08 in Centre Distance, 3/8 x 3/8 x 3-3/4 in Input Keyway, 80 % Efficiency, Synthetic/Mineral Oil Lubrication, 14.5 in L x 14.4 in W x 16.47 in H
SPECIFICATIONS
| Output Size | : | 2-7/16 in |
| Input Size | : | 1.38 in |
| Input Type | : | C-Face Quilled |
| Output Type | : | Tapered Bore |
| Gear Ratio | : | 35:1 |
| Type | : | Double Reduction Type CMTP |
| Dimensions | : | 14.5 in L x 14.4 in W x 16.47 in H |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | Synthetic/Mineral Oil |
| Efficiency | : | 80 % |
| Keyway Size | : | 3/8 x 3/8 x 3-3/4 in Input |
| Horsepower | : | 1 hp |
| Output Maximum Speed | : | 50 rpm |
| Torque Rating | : | 36.013 in-lb Input/1260.48 in-lb Output |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_PB0001_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_PB0012_Specification_Sheet.pdf
