NSS8P42
Browning® 1214154 Type 14 Spur Gear With Type P1 Split Taper® Bushing, 8 Diametral Pitch, 14.5 deg Pressure Angle, 1-1/4 in W Face, 42 Teeth, 5-1/4 in Dia Pitch, 1/2 to 1-3/4 in Dia Bore, Steel
- CP#:
- Item#: NSS8P42-P01
- Mfr#: NSS8P42
- Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning® bushed gears hold the shaft with clamp fit and eliminate costly reworking on replacement gears
- Less expensive
- Without hardened teeth
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

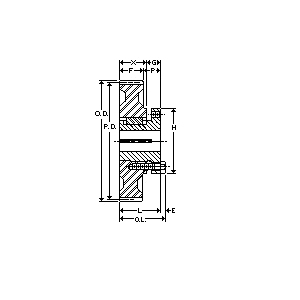

Browning® Spur Gear, Type 14, 1/2 to 1-3/4 in Bore, 5-1/2 in OD, 1:1 Gear Ratio, 42 Teeth, 8 Diametral Pitch, 5-1/4 in Pitch Diameter, 1-1/4 in Face Width, 3 in Diameter Hub, 11/16 in Hub Projection, 2-3/16 in Overall Length, 14.5 deg Pressure Angle, 1/4 x 1/8, 3/16 x 3/32, 3/8 x 3/16, 5/16 x 5/32, 1/8 x 1/16 in Keyway, Steel
SPECIFICATIONS
| Gear Ratio | : | 1:1 |
| Hub Diameter | : | 3 in |
| Hub Projection | : | 11/16 in |
| Keyway Size | : | 1/4 x 1/8, 3/16 x 3/32, 3/8 x 3/16, 5/16 x 5/32, 1/8 x 1/16 in |
| Outside Diameter | : | 5-1/2 in |
| Overall Length | : | 2-3/16 in |
| Type | : | Type 14 |
| Diametral Pitch | : | 8 |
| Pressure Angle | : | 14.5 deg |
| Face Width | : | 1-1/4 in |
| Number of Teeth | : | 42 |
| Pitch Diameter | : | 5-1/4 in |
| Bore Diameter | : | 1/2 to 1-3/4 in |
| Material | : | Steel |
