NCS896

Browning® 1212588 Minimum Plain Bore Type 4 Spur Gear, 8 Diametral Pitch, 14.5 deg Pressure Angle, 1-1/4 in W Face, 96 Teeth, 12 in Dia Pitch, 1-1/8 to 2 in Dia Bore, Cast Iron

  • Item#: NCS896-P01
  • Mfr#: NCS896
    • Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
    • Designed to increase output, reduce costs and avoid specials
    • Minimum bore spur gears are provided from stock to allow for simple modifications
    • Without hardened teeth
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

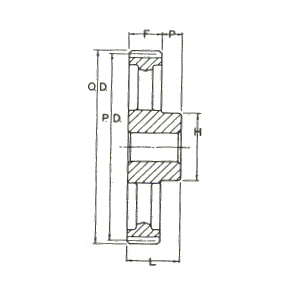

Browning® Spur Gear, Minimum Plain Bore Type 4, 1-1/8 to 2 in Bore, 12-1/4 in OD, 96 Teeth, 8 Diametral Pitch, 12 in Pitch Diameter, 1-1/4 in Face Width, 3-1/4 in Diameter Hub, 1-1/8 in Hub Projection, 2-3/8 in Overall Length, 14.5 deg Pressure Angle, Cast Iron

SPECIFICATIONS

Hub Diameter      :      3-1/4 in
Hub Projection      :      1-1/8 in
Outside Diameter      :      12-1/4 in
Overall Length      :      2-3/8 in
Type      :      Minimum Plain Bore Type 4
Diametral Pitch      :      8
Pressure Angle      :      14.5 deg
Face Width      :      1-1/4 in
Number of Teeth      :      96
Pitch Diameter      :      12 in
Bore Diameter      :      1-1/8 to 2 in
Material      :      Cast Iron
