Browning® H5015X 1 1/8
Browning®

Browning® H5015X 1 1/8

loading
Browning® H5015X 1 1/8
Browning®
Email Print

H5015X 1 1/8

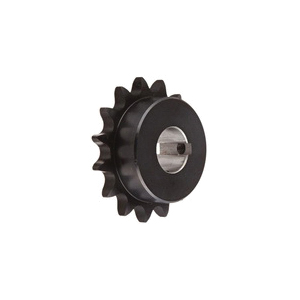

Browning® 1128818 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 1-1/8 in Dia Bore, 3.32 in OD, #50 Chain, 15 Teeth, 5/8 in Pitch, Steel

  • Item#: H5015X 1 1/8-P01
  • Mfr#: H5015X 1 1/8
    • Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
    • In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
    • For use with 5/8 in pitch ANSI chain
    • Additional setscrew at 90 and 180 deg to keyway
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 1-1/8 in Bore, 3.32 in OD, #50 Chain, 15 Teeth, 3.006 in Pitch Diameter, 2.391 in Diameter Hub, 1.016 in Length Through Bore, Steel

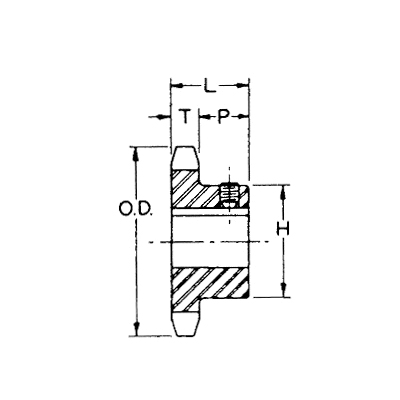

SPECIFICATIONS

Bore Diameter      :      1-1/8 in
Outside Diameter      :      3.315 in
Chain Size      :      #50
Number of Teeth      :      15
Pitch      :      0.625 in
Material      :      Steel, Hardened Teeth
Type      :      Single Strand Finished Bore Type 1
Pitch Diameter      :      3.006 in
Hub Diameter      :      2.391 in
Length Through Bore      :      1.016 in
