H100TB20

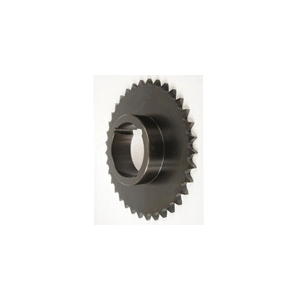

Browning® 3789864 Single Strand Taper Bore Bushed Type 1 Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 8.642 in OD, #100 Chain, 20 Teeth, Steel
- CP#:
- Item#: H100TB20-P01
- Mfr#: H100TB20
- This product has the Browning® exclusive twice the life guarantee
- Compact design
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- 1-11/16 in/ft taper
- Setscrew or cap screw acts as external key
- Flush fit, less space on shaft
- No protruding flange
- For use with 1-1/4 in pitch ANSI chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
Browning® Roller Chain Sprocket, Single Strand Taper Bore Bushed Type 1, 1/2 in Bore Dia, 8.642 in Outside Dia, #100 Chain, 20 Teeth, 7.991 in, 4-1/2 in Hub Dia, 1-3/4 in Length Through Bore, Steel
SPECIFICATIONS

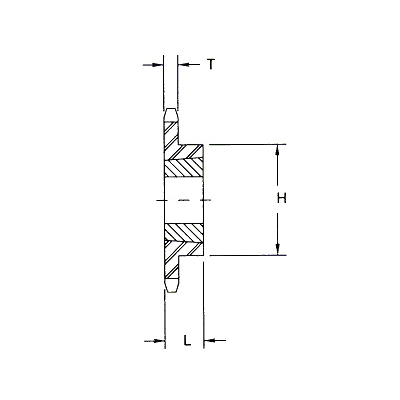

| Bore Diameter | : | 1/2 in |
| Outside Diameter | : | 8.642 in |
| Chain Size | : | #100 |
| Number of Teeth | : | 20 |
| Material | : | Steel |
| Type | : | Single Strand Taper Bore Bushed Type 1 |
| Pitch Diameter | : | 7.991 in |
| Hub Diameter | : | 4-1/2 in |
| Length Through Bore | : | 1-3/4 in |
