D50TB21
Browning® 3748043 Double Strand Type 2 Roller Chain Sprocket With Hardened Teeth, 1/2 to 2 in Dia Bore, 4.522 in OD, 50 Chain, 21 Teeth, 5/8 in Pitch, Steel
- CP#:
- Item#: D50TB21-P01
- Mfr#: D50TB21
- This product has the Browning® exclusive twice the life guarantee
- Compact design
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- Flush fit, less space on shaft and no protruding flange
- Setscrew or cap screw acts as external key
- For use with 5/8 in pitch ANSI chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

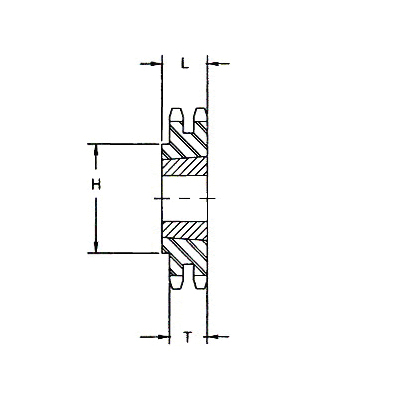

Browning® Roller Chain Sprocket, Double Strand Type 2, 1/2 to 2 in Bore, 4.522 in OD, 50 Chain, 21 Teeth, 4.193 in Pitch Diameter, 3-1/2 in Diameter Hub, 1-1/4 in Length Through Bore, Steel
SPECIFICATIONS
| Bushing Type | : | Taper Bore |
| Bore Diameter | : | 1/2 to 2 in |
| Outside Diameter | : | 4.522 in |
| Chain Size | : | 50 |
| Number of Teeth | : | 21 |
| Pitch | : | 0.625 in |
| Material | : | Steel |
| Hub Diameter | : | 3-1/2 in |
| Length Through Bore | : | 1-1/4 in |
| Pitch Diameter | : | 4.193 in |
| Type | : | Double Strand Type 2 |
