Browning® AK154H
Browning®

Browning® AK154H

loading
Browning® AK154H
Browning®
Email Print

AK154H

Browning® 1042365 AK Series Type 3 FHP Single Groove Sheave, Bushed Bore, 1/2 to 1-1/2 in Dia Bore, 15-1/4 in OD, 15.2 in (A)/14.66 in (3L) Dia Pitch, 3/4 in W Face

  • Item#: AK154HBRO
  • Mfr#: AK154H
    • Largest selection of H bushed sheaves of any other manufacturer Browning® offers bushed sheaves in both A and B combination (A/B) configuration
    • All sheaves are statically balanced to assure smooth and vibration free performance
    • Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Browning® quality FHP sheaves are offered in both finished bore and bushed style offerings. Bushing bore ranges from 3/8 in to 1-1/2 in. Bushed product is offered in AKH, 2AKH, BKH and 2BKH sheaves. Browning® FHP sheaves are manufactured to the highest quality and balance available. They are also painted with durable grey paint. Parts are shipped individually boxed and labeled.

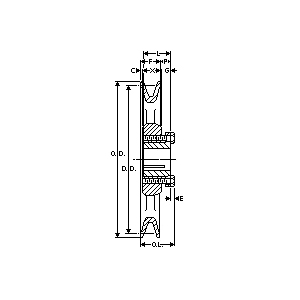

Browning® FHP Single Groove Sheave, Type 3, Series: AK Series, Bushed Bore, 1/2 to 1-1/2 in Bore, 15-1/4 in OD, 15.2 in (A)/14.66 in (3L) Pitch Diameter, 3/4 in Face Width, 0.44 in Hub Projection, H Bushing, 1-1/2 in Overall Length, For Use With: GripBelt® 4L/A and 3L Cross Section V-Belt, Cast Iron

SPECIFICATIONS

Bushing Type      :      H
Series      :      AK Series
Material      :      Cast Iron
Overall Length      :      1-1/2 in
Bore Type      :      Bushed
Bore Diameter      :      1/2 to 1-1/2 in
Outside Diameter      :      15-1/4 in
Pitch Diameter      :      15.2 in (A)/14.66 in (3L)
Face Width      :      3/4 in
Hub Projection      :      0.44 in
Type      :      Type 3
Suitable For Use With      :      GripBelt® 4L/A and 3L Cross Section V-Belt
