- Browning® 767955
767955

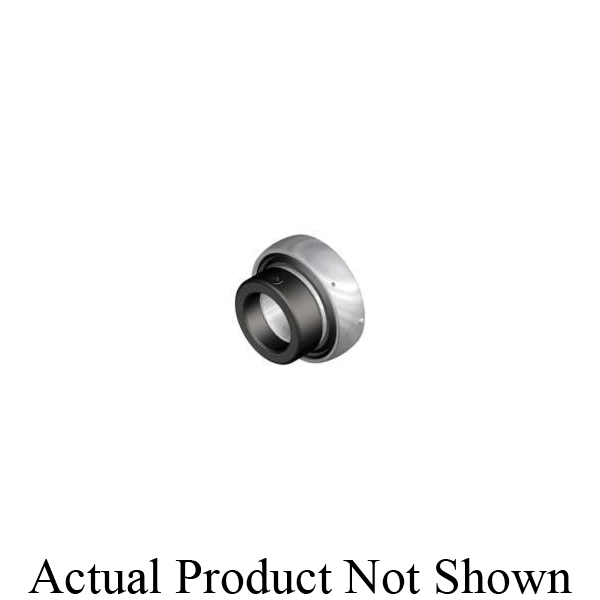

Browning® 767955 VE 100 Light Duty Straight Bore Ball Bearing Insert, 1/2 in Dia Bore, 1.5748 in OD, 1-3/16 in W, 2108 lb Dynamic/1117 lb Static Load
- CP#:
- Item#: VE-108-P01
- Mfr#: 767955
- UPC: 662289551484
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Positive contact molded nitrile rubber single lip contact seal
- An anti-rotation rivet prevents outer ring creep or rotation within the housing thru hardening inner race
- Lithium complex NLGI #2 grease with an EP additive
- Spherical outside diameter
- Without Snap Ring
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
Browning® Ball Bearing Insert, Light Duty Straight Bore, Series: VE 100, 1/2 in Bore, 1.5748 in OD, 1-3/16 in Width, Double Seal Closure, 2108 lb Dynamic/1117 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Plastic Cage, 5000 rpm Maximum, -20 to 200 deg F, Black Oxide Coated
SPECIFICATIONS
| Series | : | VE 100 |
| Mounted | : | Yes |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_LS124_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_LS124_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_VE114_Specification_Sheet.pdf
