767632

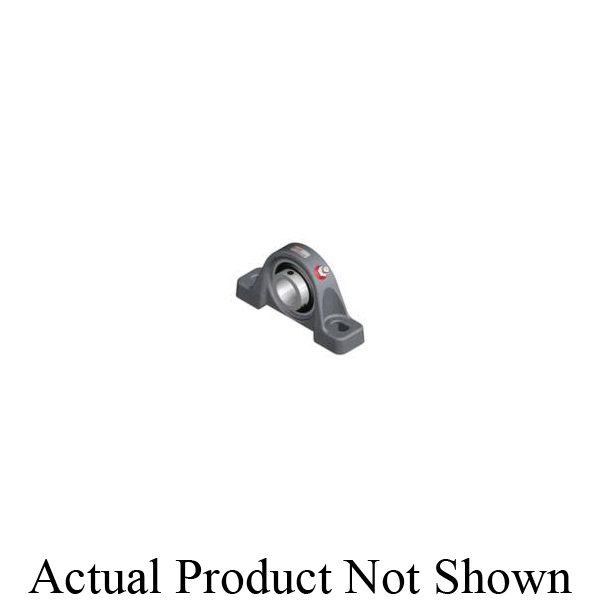

Browning® 767632 VPLS 200 Normal Duty Pillow Block Ball Bearing, 1/2 in Dia Bore, 3-3/16 to 4-1/16 in L Bolt Center-to-Center, 1-1/16 in Base to Bore Centerline, 4-7/8 in OAL x 2-3/32 in OAH
- CP#:
- Item#: VPLS-208-P01
- Mfr#: 767632
- UPC: 662289524693
- 120 deg spaced, balanced 3-point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- The rugged base design provides an excellent mounting foundation, this is integral to prevent sheet metal "buckling"
- Positive contact molded nitrile rubber contact seal with an auxiliary flinger element standard
- An anti-rotation rivet prevents outer ring creep or rotation, within the housing
- Zone hardened inner race
- Spherical outer diameter bearing insert
- 52100 steel insert
- Alemite fitting lubrication
- Nylon retainer
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.
Browning® Pillow Block Ball Bearing, Normal Duty, Series: VPLS 200, 1/2 in Bore, 3-3/16 to 4-1/16 in Bolt Center-to-Center Length, 1-1/16 in Base to Bore Centerline, 4-7/8 in Overall Length, 2-3/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-7/32 in Base Width, Set Screw Locking Device, Single Lip Contact with Flinger Seal, Non-Expansion (Fixed) Expansion, 2108 lb Dynamic/1117 lb Static Load, -20 to 200 deg F, 7500 rpm Maximum, Cast Iron, Gray Painted
SPECIFICATIONS
| Base Width | : | 1-7/32 in |
| Base to Bore Centerline | : | 1-1/16 in |
| Series | : | VPLS 200 |
| Bolt Center-to-Center Length | : | 3-3/16 to 4-1/16 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Set Screw |
| Finish | : | Gray Painted |
| Overall Length | : | 4-7/8 in |
| Load Capacity | : | 2108 lb Dynamic/1117 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 7500 rpm |
| Inside Diameter | : | 1/2 in |
| Mounted | : | Yes |
| Overall Height | : | 2-3/32 in |
| Seal Type | : | Single Lip Contact with Flinger |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_767344_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_767404_Manual.pdf
