- Browning® 767305
767305

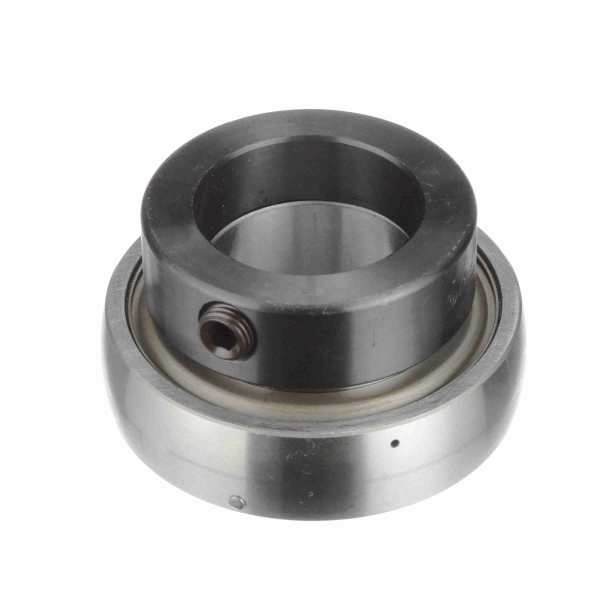

Browning® 767305 VE 100 Light Duty Straight Bore Ball Bearing Insert, 1-1/4 in Dia Bore, 2.8346 in OD, 1-37/64 in W, 5782 lb Dynamic/3493 lb Static Load
- CP#:
- Item#: VE-120-P01
- Mfr#: 767305
- UPC: 662289310630
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Positive contact molded nitrile rubber single lip contact seal
- An anti-rotation rivet prevents outer ring creep or rotation within the housing thru hardening inner race
- Lithium complex NLGI #2 grease with an EP additive
- Spherical outside diameter
- Without Snap Ring
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
Browning® Ball Bearing Insert, Light Duty Straight Bore, Series: VE 100, 1-1/4 in Bore, 2.8346 in OD, 1-37/64 in Width, Double Seal Closure, 5782 lb Dynamic/3493 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Plastic Cage, 3000 rpm Maximum, -20 to 200 deg F, Black Oxide Coated
SPECIFICATIONS
| Series | : | VE 100 |
| Bearing Material | : | Steel |
| Closure Type | : | Double Seal |
| Finish | : | Black Oxide Coated |
| Load Capacity | : | 5782 lb Dynamic/3493 lb Static |
| Maximum Speed | : | 3000 rpm |
| Outside Diameter | : | 2.8346 in |
| Seal Material | : | Nitrile Rubber |
| Inside Diameter | : | 1-1/4 in |
| Mounted | : | Yes |
| Width | : | 1-37/64 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_LS124_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_LS124_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_VE114_Specification_Sheet.pdf
