6B64SK

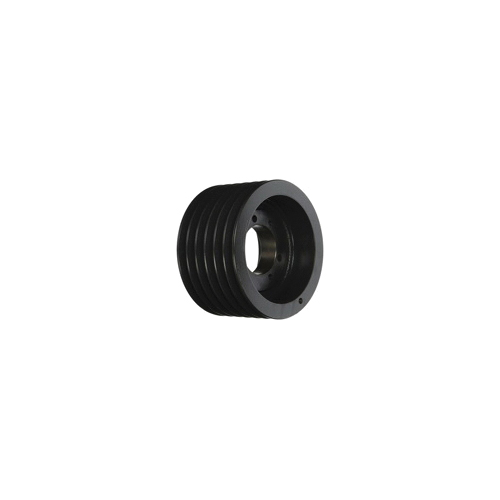

Browning® 1005602 Type A Solid Multiple Sheave, 1/2 to 2-5/8 in QD Bore, 6-3/4 in OD, 6 Grooves, 6.2 in (A)/6.7 in (B) Dia Pitch, 4-3/4 in W Face
- CP#:
- Item#: 6B64SK-P01
- Mfr#: 6B64SK
- Combination groove all Browning® B sheaves permit the running of A and B belts to be run in them and thus providing a variety of different pitch diameters and horsepower
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
Browning® Multiple Sheave, Type A Solid, QD Bore, 1/2 to 2-5/8 in Bore, 6-3/4 in OD, 6.2 in A/6.7 in B Pitch Diameter, 6 Grooves, 4-3/4 in Face Width, SK Bushing, 6-3/4 in Overall Length, For Use With: GripBelt® A and B Cross Section V-Belt, Cast Iron
SPECIFICATIONS
| Overall Length | : | 6-3/4 in |
| Material | : | Cast Iron |
| Bushing Type | : | SK |
| Bore Diameter | : | 1/2 to 2-5/8 in |
| Bore Type | : | QD |
| Outside Diameter | : | 6-3/4 in |
| Number of Grooves | : | 6 |
| Pitch Diameter | : | 6.2 in A/6.7 in B |
| Face Width | : | 4-3/4 in |
| Suitable For Use With | : | GripBelt® A and B Cross Section V-Belt |
| Type | : | Type A Solid |
