6B5V44

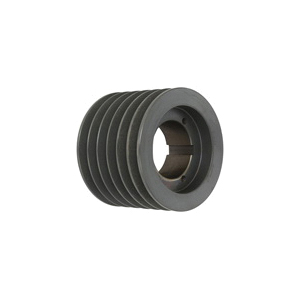

Browning® 1969294 B5V® Type 5 Multiple Sheave, 3/4 to 1-3/4 in Split Taper Bore, 4.68 in OD, 6 Grooves, 4.2 in (A)/4.7 in (B) Dia Pitch, 4-19/32 in W Face
- CP#:
- Item#: 6B5V44-P01
- Mfr#: 6B5V44
- Combination groove all Browning® B5V sheaves permit the running of A, 4L, B, 5L and 5V belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
- New casting design the B5V® castings were developed using CAD and finite elements analysis to determine where to add and eliminate material
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

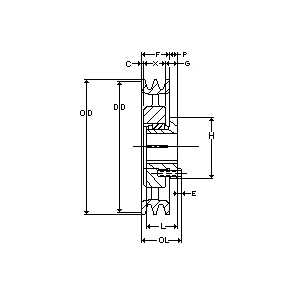

Browning® Multiple Sheave, Type 5, Series: B5V®, Split Taper Bore, 3/4 to 1-3/4 in Bore, 4.68 in OD, 4.2 in (A)/4.7 in (B) Pitch Diameter, 6 Grooves, 4-19/32 in Face Width, P2 Bushing, 5-15/32 in Overall Length, For Use With: GripBelt® A and B, 5V Cross Section V-Belt, Cast Iron
SPECIFICATIONS
| Series | : | B5V® |
| Overall Length | : | 5-15/32 in |
| Material | : | Cast Iron |
| Bushing Type | : | P2 |
| Bore Diameter | : | 3/4 to 1-3/4 in |
| Bore Type | : | Split Taper |
| Outside Diameter | : | 4.68 in |
| Number of Grooves | : | 6 |
| Pitch Diameter | : | 4.2 in (A)/4.7 in (B) |
| Face Width | : | 4-19/32 in |
| Suitable For Use With | : | GripBelt® A and B, 5V Cross Section V-Belt |
| Type | : | Type 5 |
