3VX300

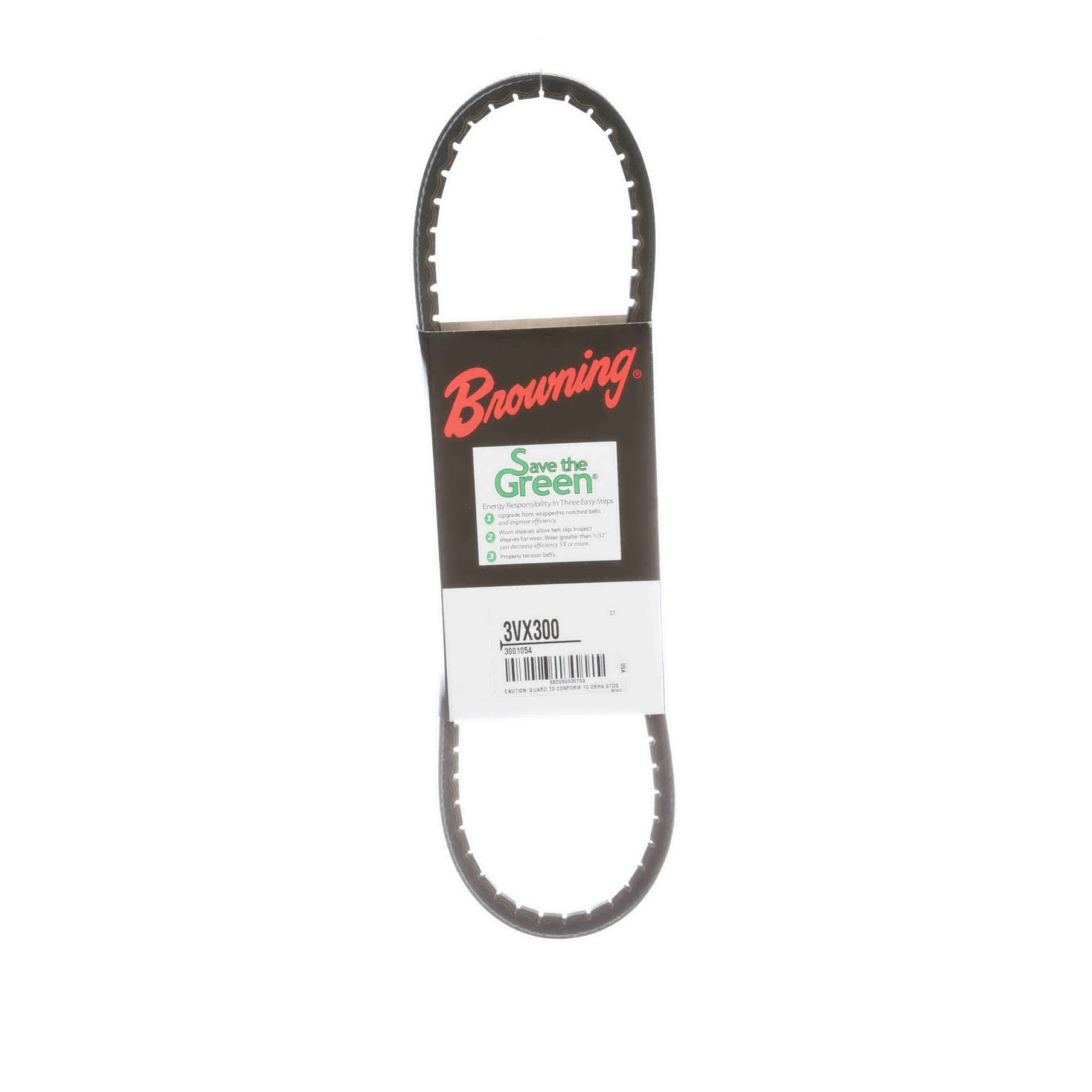

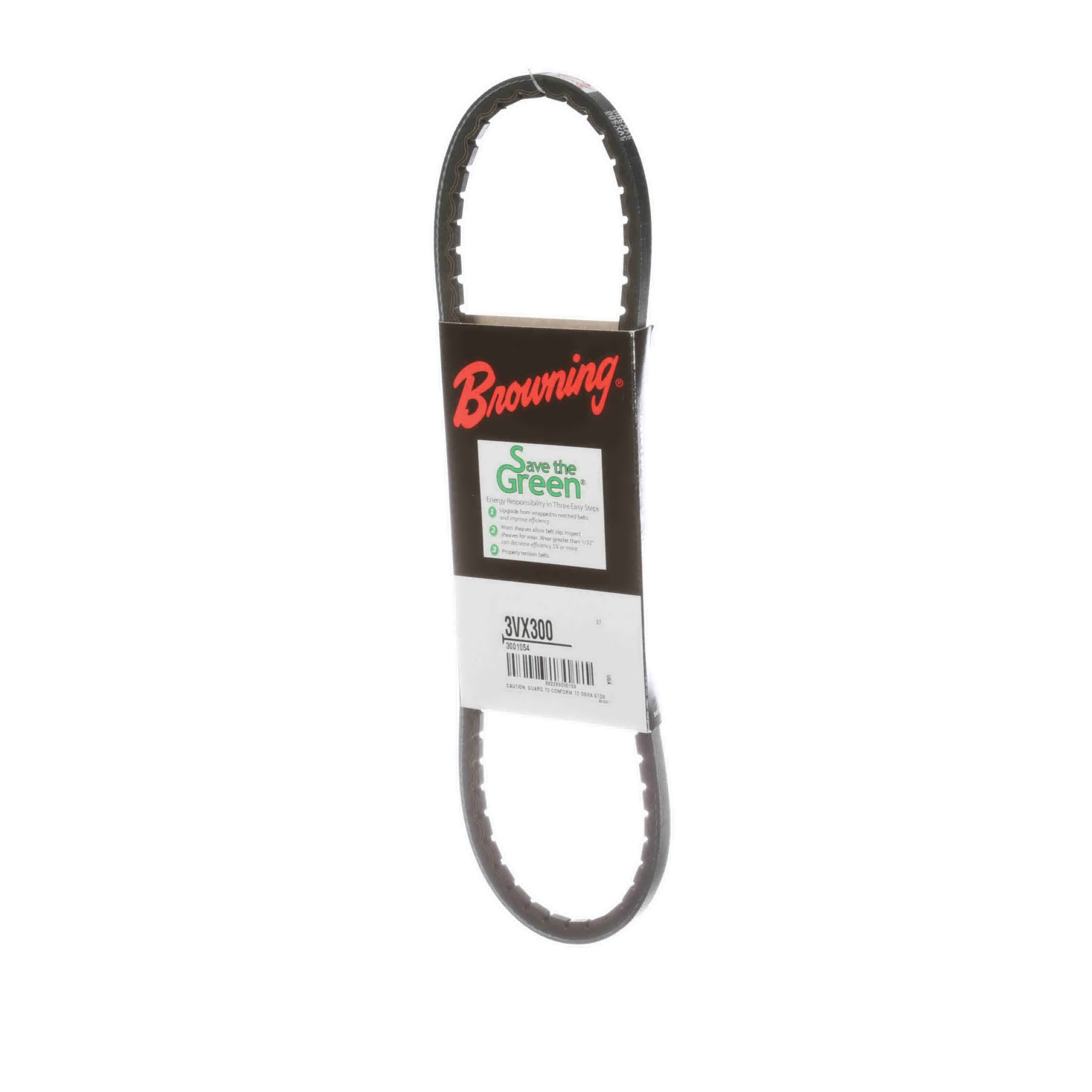

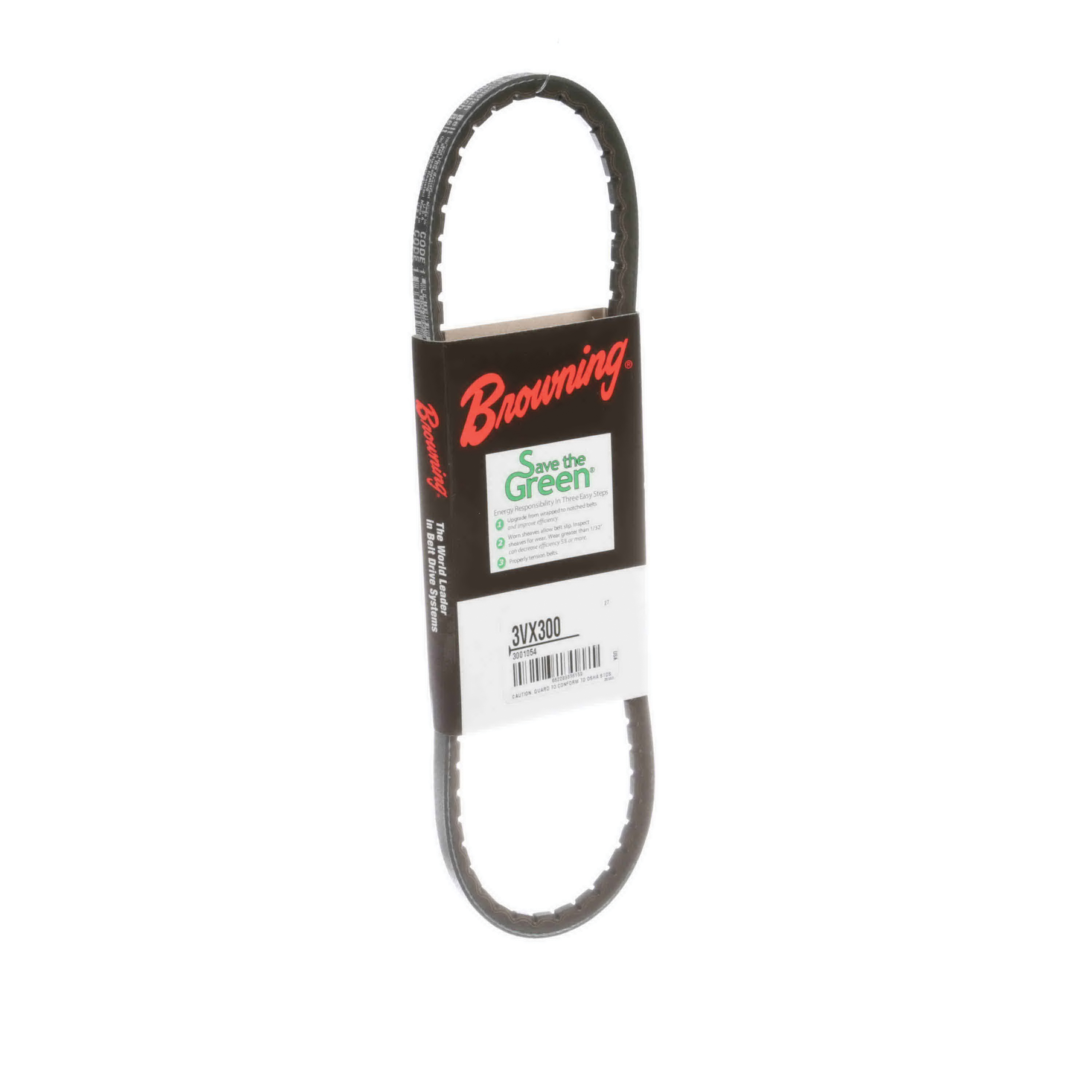

Browning® GripNotch® 3001054 3V Cogged Notched V-Belt, 3VX Section, 3/8 in W Top, 30 in L Outside, 15/16 in THK, EPDM

  • Item#: 3VX300BRO
  • Mfr#: 3VX300
    • Browning® 358 notched belts are constructed of EPDM material wrapped top and bottom, increased operating temperature range of -60 to 250 F deg
    • Browning® 358 belts provide more horsepower in the same span than conventional ABC belts, this enables you to reduce drive cost
    • Using 358 belts can allow for smaller drive components while still meeting the drive requirements, thus lowering the overall drive cost
    • Browning® belts offer the code 1 belt system on all classical and 358 belts, allowing easy selection of just one match number for each belt size, this ensures tighter than RMA standards
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Browning® GripNotch® Notched V-Belt, Cogged, Series: 3V, 3VX Section Size, 3/8 in Top Width, 30 in Outside Length, 15/16 in Thickness, 1 Rib, -60 to 250 deg F, 1 Band, EPDM

SPECIFICATIONS

Series      :      3V
Top Width      :      3/8 in
Section Size      :      3VX
Material      :      EPDM
Number of Ribs      :      1
Type      :      Cogged
Outside Length      :      30 in
Thickness      :      15/16 in
Number of Bands      :      1
Temperature Range      :      -60 to 250 deg F
