- Browning® 3B300SF
3B300SF

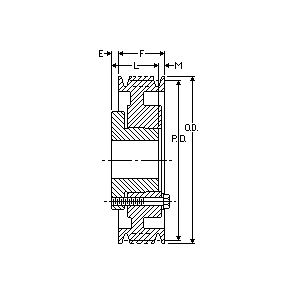

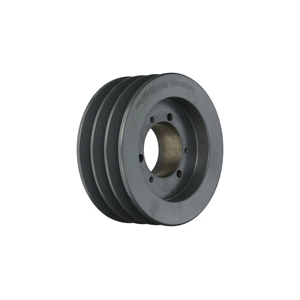

Browning® 1004779 Type D Arm Multiple Sheave, 1/2 to 2-15/16 in QD Bore, 30.35 in OD, 3 Grooves, 29.8 in (A)/30.3 in (B) Dia Pitch, 2-1/2 in W Face
- CP#:
- Item#: 3B300SF-P01
- Mfr#: 3B300SF
- Combination groove all Browning® B sheaves permit the running of A and B belts to be run in them and thus providing a variety of different pitch diameters and horsepower
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
Browning® Multiple Sheave, Type D Arm, QD Bore, 1/2 to 2-15/16 in Bore, 30.35 in OD, 29.8 in (A)/30.3 in (B) Pitch Diameter, 3 Grooves, 2-1/2 in Face Width, SF Bushing, 30.35 in Overall Length, For Use With: GripBelt® A and B Cross Section V-Belt, Cast Iron
SPECIFICATIONS
| Overall Length | : | 30.35 in |
| Material | : | Cast Iron |
| Bushing Type | : | SF |
| Bore Diameter | : | 1/2 to 2-15/16 in |
| Bore Type | : | QD |
| Outside Diameter | : | 30.35 in |
| Number of Grooves | : | 3 |
| Pitch Diameter | : | 29.8 in (A)/30.3 in (B) |
| Face Width | : | 2-1/2 in |
| Suitable For Use With | : | GripBelt® A and B Cross Section V-Belt |
| Type | : | Type D Arm |
