Browning® 3758893
Browning®

Browning® 3758893

loading
Browning®

3758893

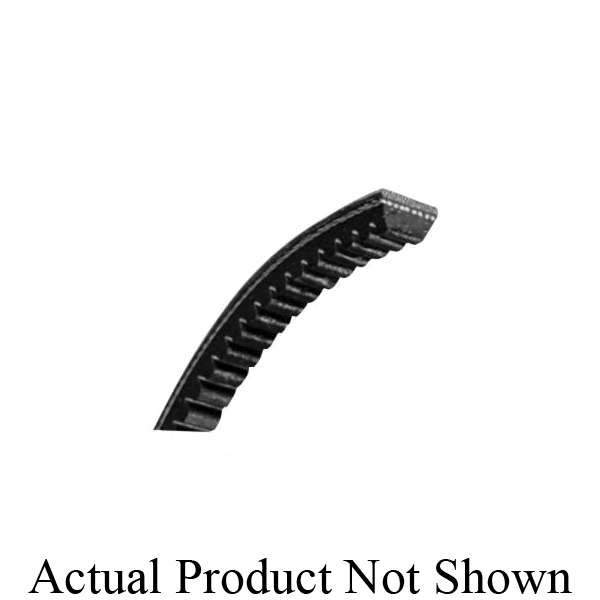

Browning® 358 Gripband® Gripnotch® 3758893 Cogged V-Belt, 5VX Section, 5/8 in W Top, 108 in L Outside, 17/32 in THK, EPDM

  • Item#: 5VX1080BRO
  • Mfr#: 3758893
  • UPC: 662289038596
    • Oil and heat resistant
    • Static conducting
    • Gripnotch® are EPDM rubber temperature range -60 to 250 deg F
    • Special blend of fiberglass and polyester for belt cord flexibility and strength
    • Length tolerances 10X tighter than industry standard
    • Single belt fabric with no overlap for reduced vibration
    • Tubular woven fabric for lengthwise flexibility and cross rigidity
    • Ground form edges on AX, BX, 3VX and 5VX belts for reduced vibration
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Browning® 358 Gripband® Gripnotch® V-Belt, Cogged, 5VX Section, 5/8 in Top Width, 108 in Outside Length, 17/32 in Thickness, 1 Rib, 4.4 to 6.7/7.1 to 10.9/11.8 to 16 in Diameter Minimum Pulley, -60 to 250 deg F, EPDM

SPECIFICATIONS

Number of Ribs      :      1
Section Size      :      5VX
Top Width      :      5/8 in
Material      :      EPDM
Type      :      Cogged
Temperature Range      :      -60 to 250 deg F
Minimum Pulley Diameter      :      4.4 to 6.7/7.1 to 10.9/11.8 to 16 in
Outside Length      :      108 in
Thickness      :      17/32 in

DOCUMENTS

  • pdf
    Manual
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_1093616_Manual.pdf
  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_3001062_Catalog.pdf
