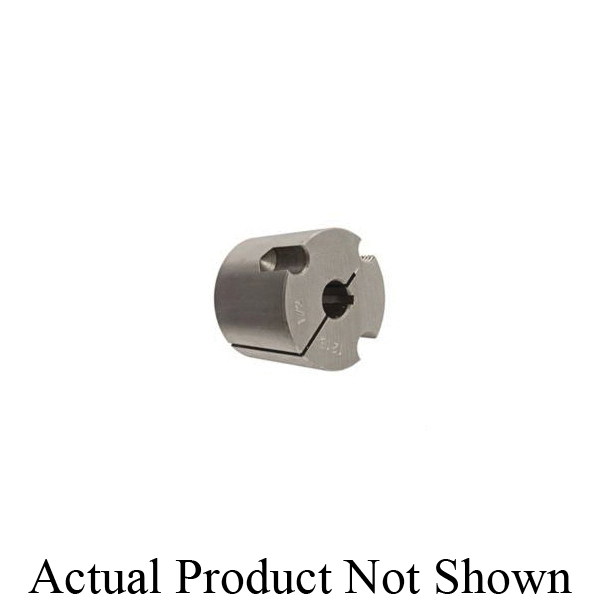

Browning® 3748787 Taper Lock Bushing, 1 in Dia Bore, 1-7/8 in Dia Barrel, 1-1/2 in OAL, Steel

  • Item#: 1215X1-P01
  • Mfr#: 3748787
  • UPC: 662289611195
    • Size 1215 bushing
    • Mounts flush in products no protruding flanges to interfere with the drive
    • Key to key drive cap screws act as an external key
    • 1-1/2 in/ft taper on barrel since this is a non-self locking taper it provides ease of installation and removal of products from the shaft
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Browning® Taper Lock Bushing, 1 in Bore Dia, 1-7/8 in Barrel Dia, 1-1/2 in/ft Taper, 1-3/4 in Bolt Circle, 2 Bolt Holes, 3/8 x 5/8 in Screw, 3550 in-lb, For Use With: Browning® Sprockets and HPT Chain Synchronous Belt Drives, 1-1/2 in Overall Length, 1/4 x 1/8 in Keyway, Steel

SPECIFICATIONS

Keyway Size      :      1/4 x 1/8 in
Torque Rating      :      3550 in-lb
Bore Diameter      :      1 in
Overall Length      :      1-1/2 in
Material      :      Steel
Bolt Circle Diameter      :      1-3/4 in
Screw Size      :      3/8 x 5/8 in
Number of Bolt Holes      :      2
Suitable For Use With      :      Browning® Sprockets and HPT Chain Synchronous Belt Drives
Taper      :      1-1/2 in/ft
Barrel Diameter      :      1-7/8 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_3625001_Catalog.pdf
  • pdf
    Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_3625001_Manual.pdf
