3746229

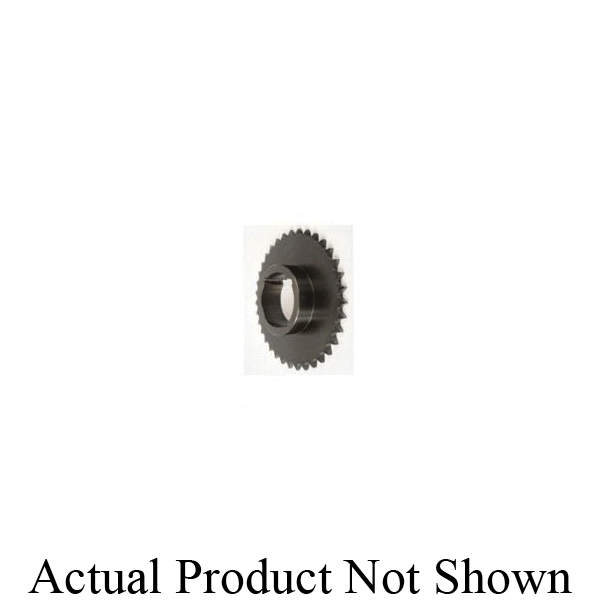

Browning® 3746229 Single Strand Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 2.833 in OD, #35 Chain, 22 Teeth, 3/8 in Pitch, Steel
- CP#:
- Item#: 35TB22-P01
- Mfr#: 3746229
- UPC: 662289605927
- This product has the Browning® exclusive twice the life guarantee
- Compact design
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- 1-11/16 in/ft taper
- Setscrew or cap screw acts as external key
- Flush fit, less space on shaft
- No protruding flange
- For use with 3/8 in pitch ANSI chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
Browning® Roller Chain Sprocket, Single Strand, 1/2 in Bore Dia, 2.833 in Outside Dia, #35 Chain, 22 Teeth, 3/8 in Pitch, 2.635 in, 2.452991 in Hub Dia, 1 in Length Through Bore, Type 1 Taper Bore Bushing, Steel
SPECIFICATIONS
| Overall Length | : | 1 in |
| Bushing Type | : | Taper Bore |
| Bore Diameter | : | 1/2 in |
| Outside Diameter | : | 2.833 in |
| Chain Size | : | #35 |
| Number of Teeth | : | 22 |
| Pitch | : | 0.375 in |
| Material | : | Steel |
| Type | : | Single Strand |
| Pitch Diameter | : | 2.635 in |
| Hub Diameter | : | 2.452991 in |
| Length Through Bore | : | 1 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_35JA20_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_35TB18_Specification_Sheet.pdf
