1251198

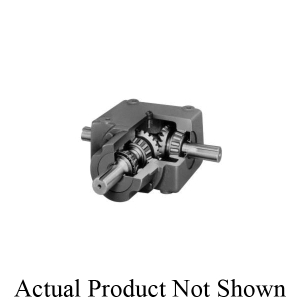

Browning® 1251198 Type LR Spiral Bevel Gear Reducer, Shaft Input, Shaft Output, 1 hp, 1:1 Gear Ratio, 1750 rpm Maximum Output, 36.013 in-lb Input/28.82 in-lb Output Torque Rating
- CP#:
- Item#: 18HSB1-LR10-P01
- Mfr#: 1251198
- UPC: 662289250028
- Rugged cast iron housings, line bored for precise gear and bearing alignment
- Carburized alloy steel straight or spiral gears manufactured to AGMA standard for long life and quite operation
- Double lip contact oil seals ride on hardened plunge ground shafts for leak free operation
- Size 18 gear reducer
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® cast iron bevel and spiral bevel gear reducers are constructed of rugged cast iron housings. These housings are line bored for precise gear and bearing alignment. To offer maximum performance, these reducers are designed with tapered roller and ball bearings. Browning® cast iron bevel and spiral bevel gear reducers are available in six sizes and ratios. These range from 1:1 to 3:1, with speed-up ratios available. Torque capacity ranges from 99 to 5942 in-lb.
Browning® Spiral Bevel Gear Reducer, Type LR, 1:1 Gear Ratio, 1 hp, Shaft Input, Shaft Output, 1-1/2 in Dia x 3 in L Input, 1-1/2 in Dia x 3 in L Output, 1750 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/28.82 in-lb Output, 4-3/32 in Centre Distance, 3/8 x 3/16 in Keyway, 80 % Efficiency, Surface Mount, Cast Iron, 16-3/32 in L x 15-5/16 in W x 8-3/16 in H
SPECIFICATIONS
| Input Size | : | 1-1/2 in Dia x 3 in L |
| Material | : | Cast Iron |
| Output Size | : | 1-1/2 in Dia x 3 in L |
| Mounting Type | : | Surface |
| Input Type | : | Shaft |
| Output Type | : | Shaft |
| Gear Ratio | : | 1:1 |
| Keyway Size | : | 3/8 x 3/16 in |
| Dimensions | : | 16-3/32 in L x 15-5/16 in W x 8-3/16 in H |
| Type | : | Type LR |
| Efficiency | : | 80 % |
| Input Maximum Speed | : | 1750 rpm |
| Horsepower | : | 1 hp |
| Output Maximum Speed | : | 1750 rpm |
| Torque Rating | : | 36.013 in-lb Input/28.82 in-lb Output |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_1251032_Specification_Sheet.pdf
