- Browning® 1125103
1125103

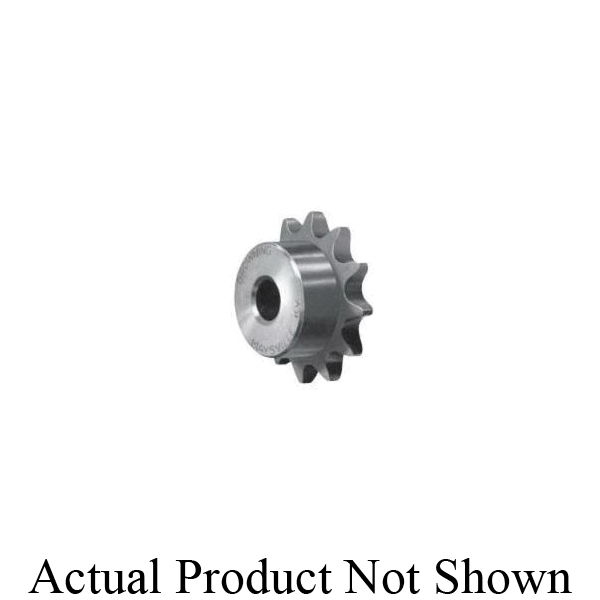

Browning® 1125103 Single Strand Minimum Bore Type B Roller Chain Sprocket, 1-1/2 in Dia Bore, 20.49 in OD, #200 Chain, 24 Teeth, 2-1/2 in Pitch, Steel
- CP#:
- Item#: 200B24BRO-P01
- Mfr#: 1125103
- UPC: 662289261673
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- For use with 2-1/2 in pitch ANSI chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type B, 1-1/2 in Bore Dia, 20.49 in Outside Dia, #200 Chain, 24 Teeth, 2-1/2 in Pitch, 19.152 in, 8-1/2 in Hub Dia, 4 in Length Through Bore, Steel
SPECIFICATIONS
| Bore Diameter | : | 1-1/2 in |
| Outside Diameter | : | 20.49 in |
| Chain Size | : | #200 |
| Number of Teeth | : | 24 |
| Pitch | : | 2-1/2 in |
| Material | : | Steel |
| Type | : | Single Strand Minimum Bore Type B |
| Pitch Diameter | : | 19.152 in |
| Hub Diameter | : | 8-1/2 in |
| Length Through Bore | : | 4 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_200A13_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_35JA20_Manual.pdf
