Brennan FS6801-20-20-NWO-FG
Brennan

Brennan FS6801-20-20-NWO-FG

loading
Brennan FS6801-20-20-NWO-FG
Brennan
Email Print

FS6801-20-20-NWO-FG

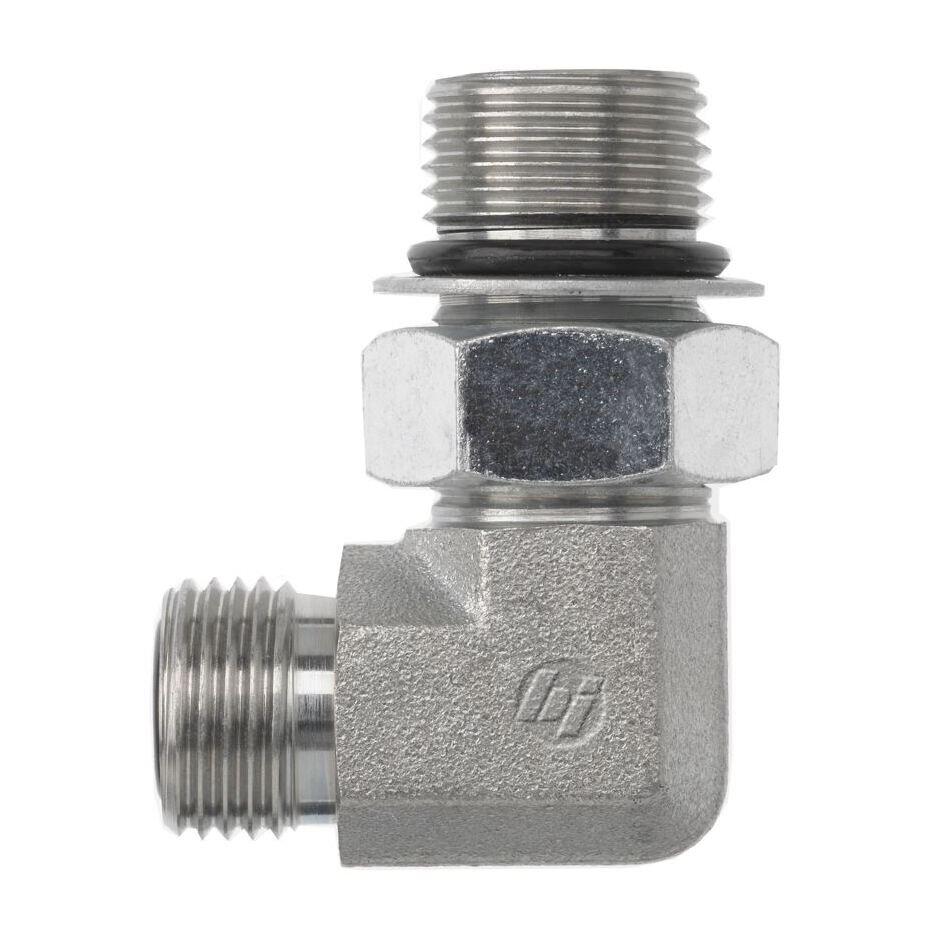

Brennan FS6801-20-20-NWO-FG FS6801-NWO-FG Hydraulic Elbow, 1 1/4 Nominal, Male Face Seal x Male Adjustable O-ring Boss End Style, Steel

  • Item#: FS6801-20-20-NWO-FG
  • Mfr#: FS6801-20-20-NWO-FG
  • Brennan offers a large selection of O-ring face seal fittings in straights, elbows, tees and crosses in a wide range and combination of sizes
  • These fittings can prevent and eliminate leaks at high-pressures within your hydraulic systems to optimize productivity
  • High-quality O-ring face seal fittings are highly reliable to help prevent component failure and can be easily disassembled and reassembled to replace O-rings or system components
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Brennan, FS6801-20-20-NWO-FG, Hydraulic Elbow, Series: FS6801-NWO-FG, 1 1/4 Nominal, Male Face Seal x Male Adjustable O-ring Boss End Style, 90 deg Angle, 1.875 in Hex, 4000 psi Pressure, Steel

California Proposition 65 Warning
Warning: This product can expose you to chemicals including Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SPECIFICATIONS

Angle      :      90 deg
Hex Size      :      1.875 in
Pressure Rating      :      4000 psi
Series      :      FS6801-NWO-FG
Nominal Size      :      1 1/4
End Style      :      Male Face Seal x Male Adjustable O-ring Boss
Material      :      Steel
