- Brennan FS6502-06-06-FG
FS6502-06-06-FG

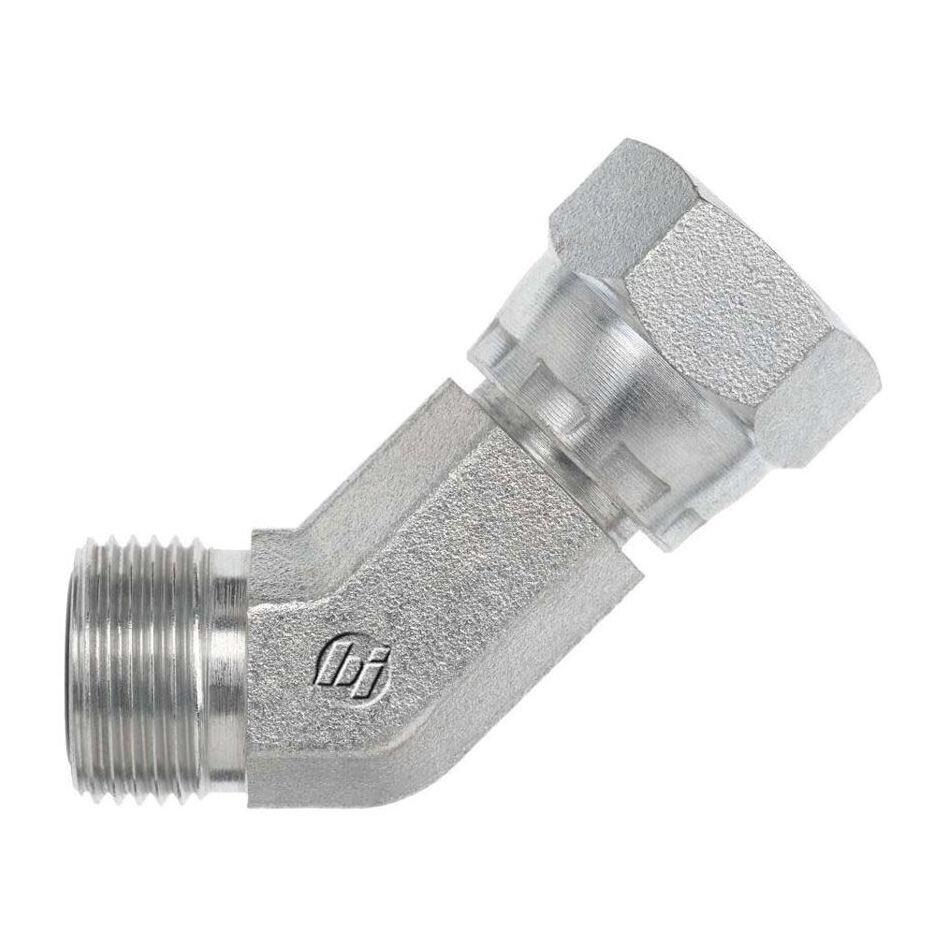

Brennan FS6502-06-06-FG FS6502-FG Hydraulic Elbow, 3/8 Nominal, Male Face Seal x Female Face Seal Swivel End Style, Steel
- CP#:
- Item#: FS6502-06-06-FG
- Mfr#: FS6502-06-06-FG
- Brennan offers a large selection of O-ring face seal fittings in straights, elbows, tees and crosses in a wide range and combination of sizes
- These fittings can prevent and eliminate leaks at high-pressures within your hydraulic systems to optimize productivity
- High-quality O-ring face seal fittings are highly reliable to help prevent component failure and can be easily disassembled and reassembled to replace O-rings or system components
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Brennan, FS6502-06-06-FG, Hydraulic Elbow, Series: FS6502-FG, 3/8 Nominal, Male Face Seal x Female Face Seal Swivel End Style, 45 deg Angle, 0.812 in Hex, 1.8 in Length, Steel, 1.8 in L Dimensions
⚠ California Proposition 65 Warning ⚠
Warning: This product can expose you to chemicals including Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Angle | : | 45 deg |
| Dimensions | : | 1.8 in L |
| Hex Size | : | 0.812 in |
| Length | : | 1.8 in |
| Series | : | FS6502-FG |
| Nominal Size | : | 3/8 |
| End Style | : | Male Face Seal x Female Face Seal Swivel |
| Material | : | Steel |
