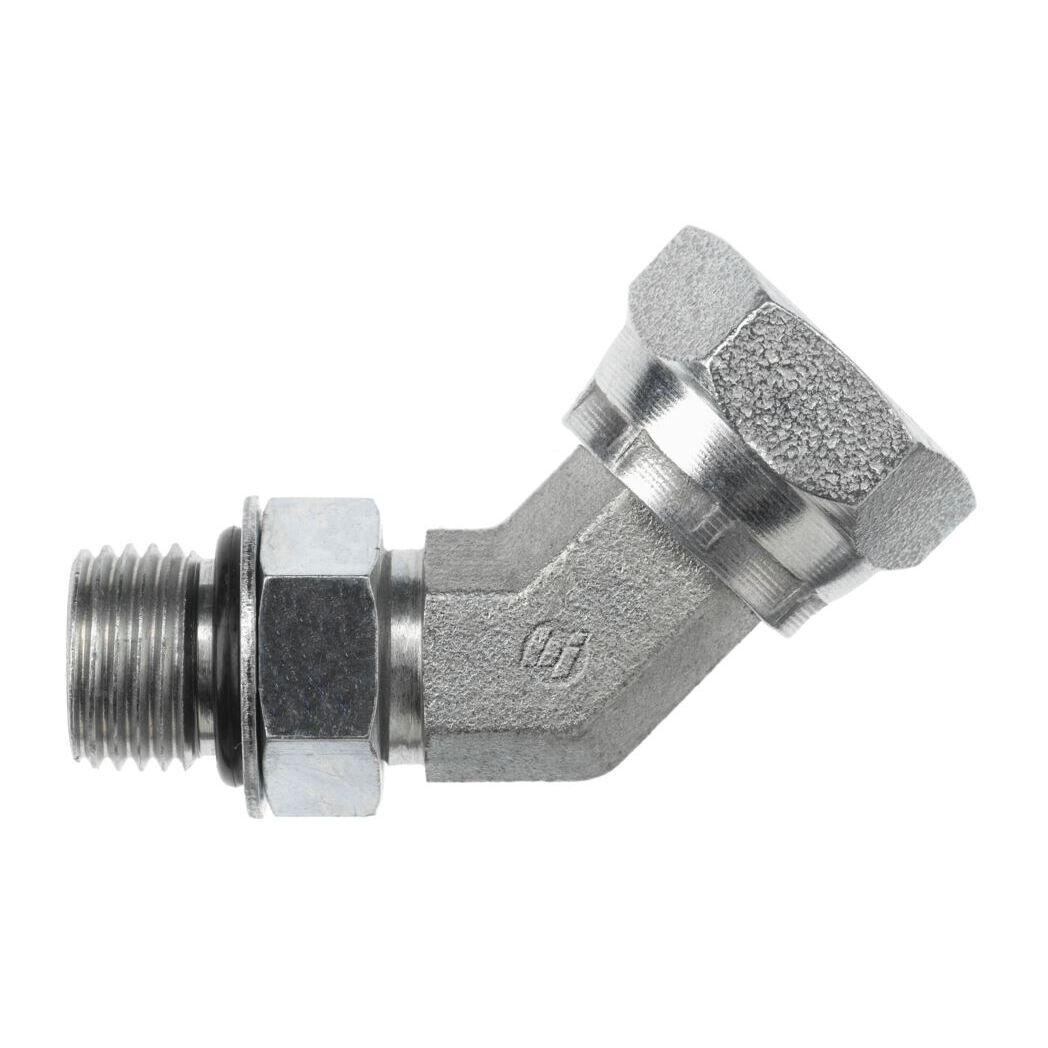

- Brennan 6902-04-04-NWO-FG
6902-04-04-NWO-FG
Brennan 6902-04-04-NWO-FG 6902-NWO-FG Hydraulic Elbow, 1/4 Nominal, Male Adjustable O-ring Boss x Female NPSM Pipe Swivel End Style, Steel
- CP#:
- Item#: 6902-04-04-NWO-FG
- Mfr#: 6902-04-04-NWO-FG
- Brennan manufactures a wide range of tube fittings and adapters that provide leak-tight connections and can stand up to high pressures and temperatures
- High-quality and easy-to-use tube fittings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Brennan, 6902-04-04-NWO-FG, Hydraulic Elbow, Series: 6902-NWO-FG, 1/4 Nominal, Male Adjustable O-ring Boss x Female NPSM Pipe Swivel End Style, 45 deg Angle, 0.563 x 0.688 in Hex, 1.85 in Length, 5000 psi Pressure, Steel, 1.85 in L Dimensions
SPECIFICATIONS
| Angle | : | 45 deg |
| Dimensions | : | 1.85 in L |
| Hex Size | : | 0.563 x 0.688 in |
| Length | : | 1.85 in |
| Pressure Rating | : | 5000 psi |
| Series | : | 6902-NWO-FG |
| Nominal Size | : | 1/4 |
| End Style | : | Male Adjustable O-ring Boss x Female NPSM Pipe Swivel |
| Material | : | Steel |
