Brennan 5600-20-20-20-FG
Brennan

Brennan 5600-20-20-20-FG

loading
Brennan 5600-20-20-20-FG
Brennan
Email Print

5600-20-20-20-FG

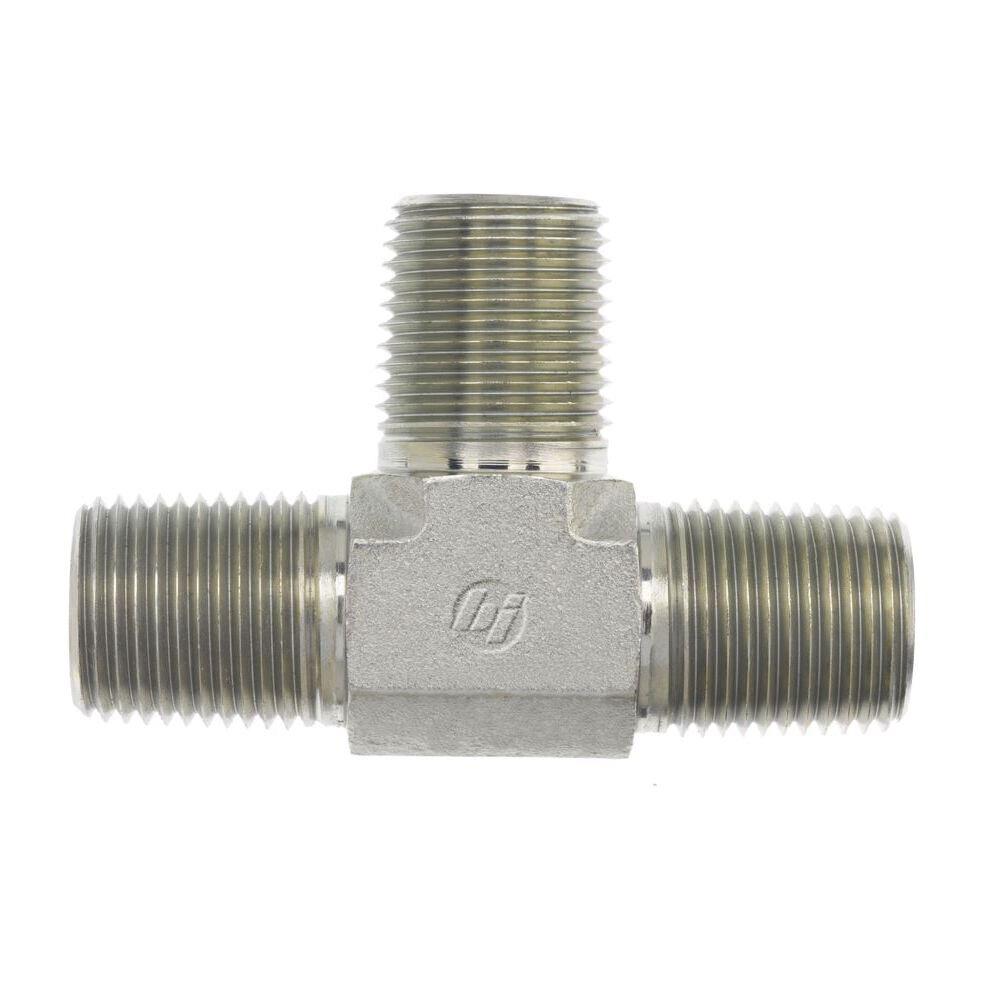

Brennan 5600-20-20-20-FG 5600-FG Hydraulic Tee, 1 1/4 Nominal, Male NPTF End Style, Steel

  • Item#: 5600-20-20-20BRN
  • Mfr#: 5600-20-20-20-FG
  • Brennan manufactures a wide range of tube fittings and adapters that provide leak-tight connections and can stand up to high pressures and temperatures
  • High-quality and easy-to-use tube fittings
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

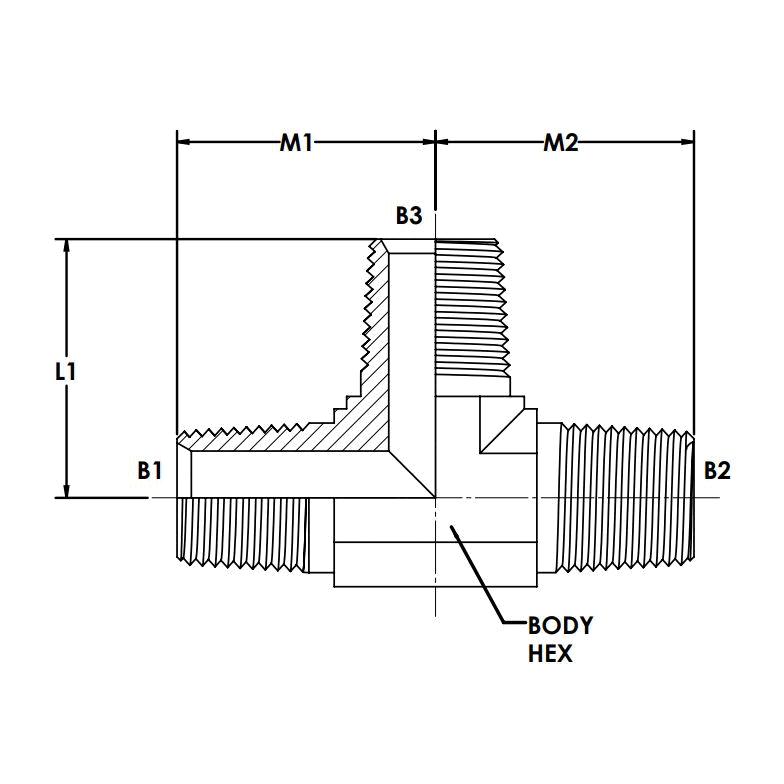

Brennan, 5600-20-20-20-FG, Hydraulic Tee, Series: 5600-FG, 1 1/4 Nominal, Male NPTF End Style, 1.625 in Hex, 4.76 in Length, 3000 psi Pressure, Steel, 4.76 in L Dimensions

California Proposition 65 Warning
Warning: This product can expose you to chemicals including Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SPECIFICATIONS

Dimensions      :      4.76 in L
Hex Size      :      1.625 in
Length      :      4.76 in
Pressure Rating      :      3000 psi
Series      :      5600-FG
Nominal Size      :      1 1/4
End Style      :      Male NPTF
Material      :      Steel
