Brennan 1503-06-08-FG
Brennan

Brennan 1503-06-08-FG

loading
Brennan 1503-06-08-FG
Brennan
Email Print

1503-06-08-FG

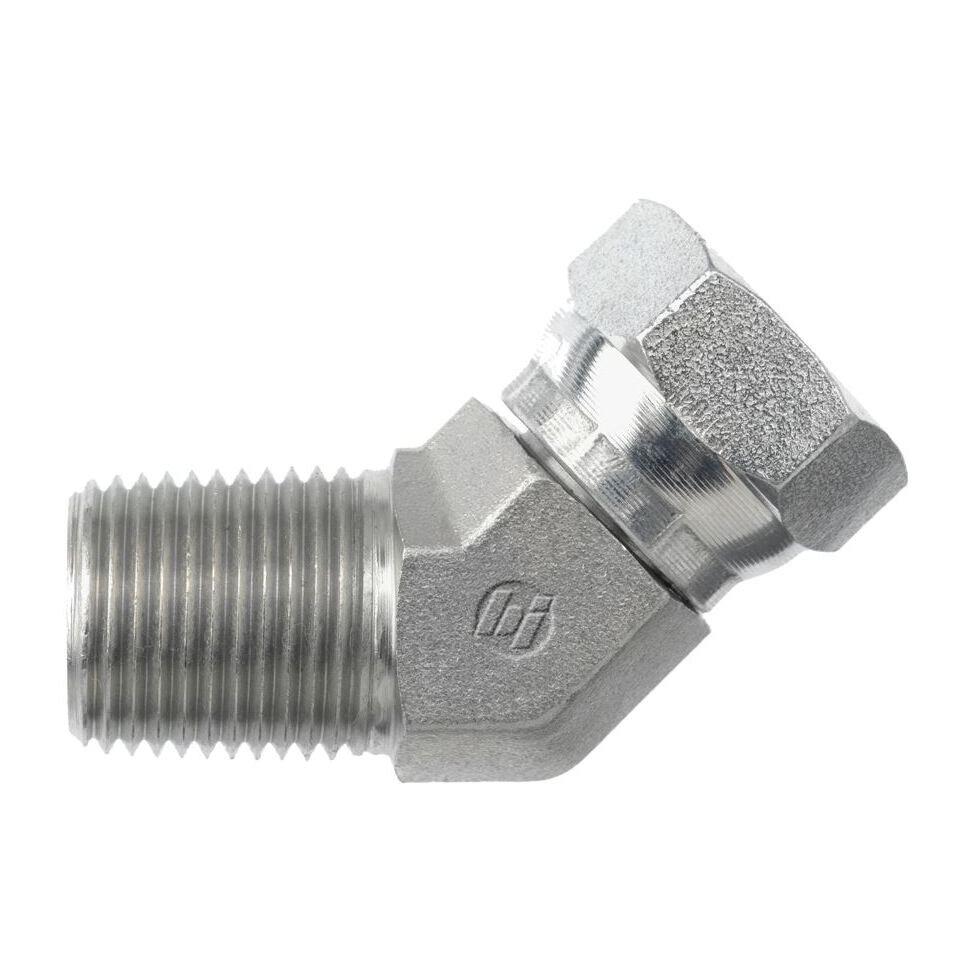

Brennan 1503-06-08-FG 1503-FG Hydraulic Elbow, 3/8 x 1/2 Nominal, Male NPTF x Female NPSM Swivel End Style, Steel

  • Item#: 1503-06-08-FG
  • Mfr#: 1503-06-08-FG
  • Brennan manufactures a wide range of tube fittings and adapters that provide leak-tight connections and can stand up to high pressures and temperatures
  • High-quality and easy-to-use tube fittings
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Brennan, 1503-06-08-FG, Hydraulic Elbow, Series: 1503-FG, 3/8 x 1/2 Nominal, Male NPTF x Female NPSM Swivel End Style, 45 deg Angle, 0.875 x 1 in Hex, 3500 psi Pressure, Steel

California Proposition 65 Warning
Warning: This product can expose you to chemicals including Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SPECIFICATIONS

Angle      :      45 deg
Hex Size      :      0.875 x 1 in
Pressure Rating      :      3500 psi
Series      :      1503-FG
Nominal Size      :      3/8 x 1/2
End Style      :      Male NPTF x Female NPSM Swivel
Material      :      Steel
