- Boston Gear® SSHF732-40K-B7-HS1-P31
SSHF732-40K-B7-HS1-P31

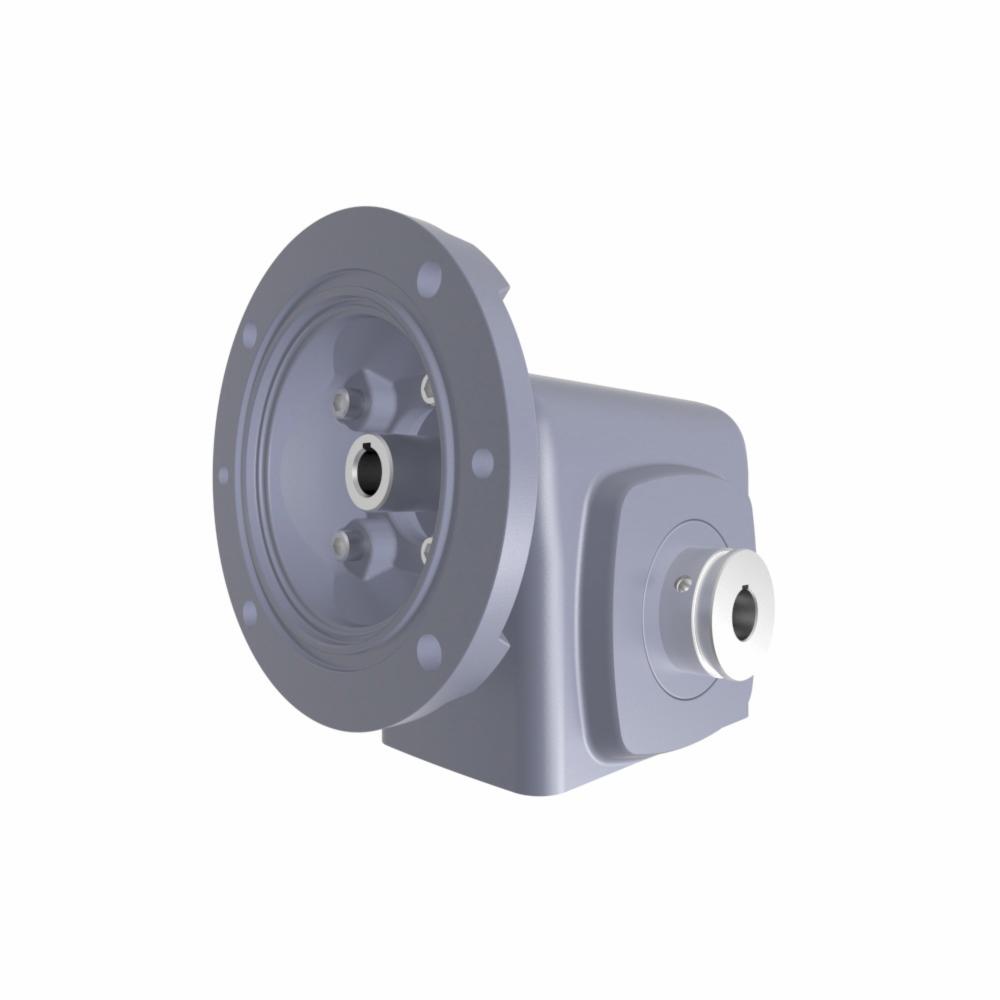

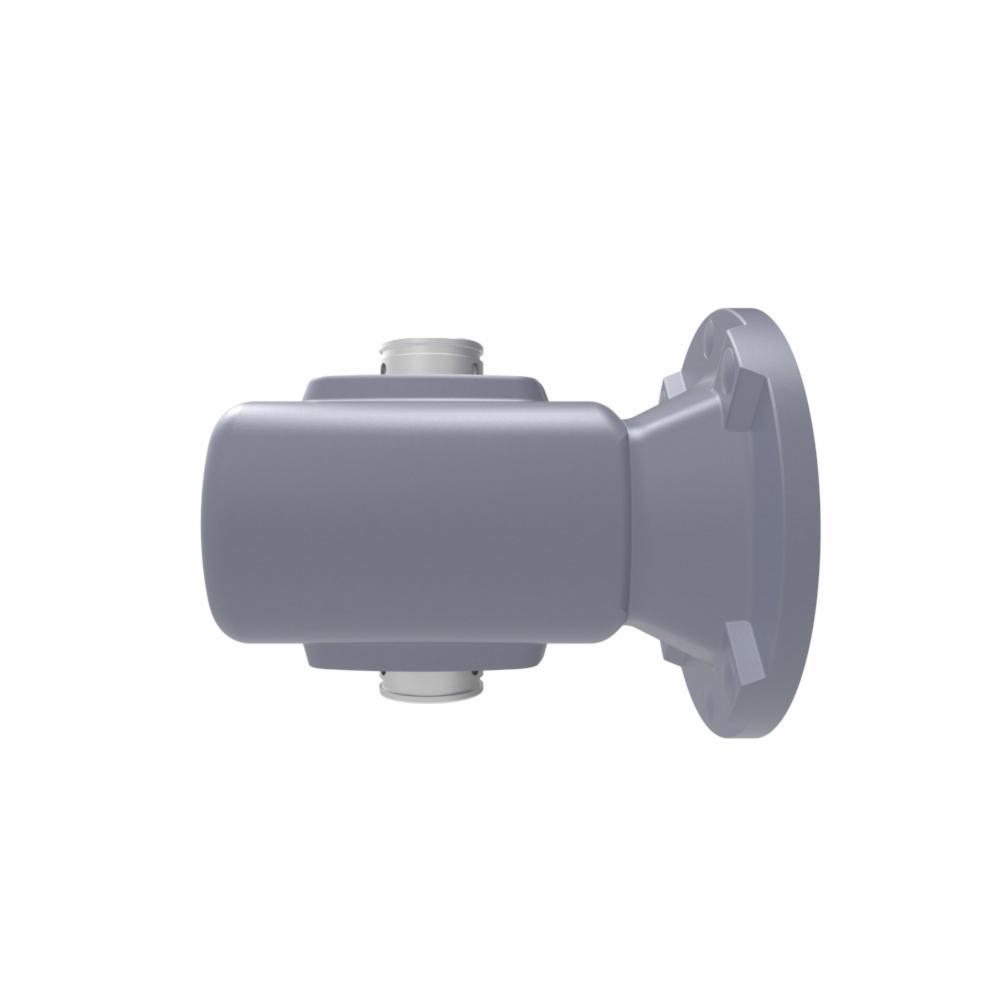

Boston Gear® Original Domed Crown™ SSHF732-40K-B7-HS1-P31 SS700 Single Reduction Right Angle Helical Worm Gear Drive, Quill Flange Input, Hollow Shaft Output, 2.1 hp Input/1.7 hp Output/2 hp Motor, 40:1 Gear Ratio, 43.8 rpm Maximum Output
- CP#:
- Item#: SSHF73240KB7HSP31
- Mfr#: SSHF732-40K-B7-HS1-P31
- UPC: 884107221717
- High pressure angle and proprietary polishing on worm provides greater operating efficiency
- Large oil reservoir provides highly efficient heat dissipation and lubrication for longer operating life
- High strength bronze worm gear is straddle mounted between heavy duty tapered roller bearings to increase thrust and overhung load capacities
- 56C to 180TC motor frame size
- Metal detectable covers for all hardware and counter bored holes prevent particle accumulation and pooling fluids to optimize wash down efficiency
- Double lipped shaft seals ensure superior performance and leak resistance
- The original Domed Crown™ rounded housing prevents foreign matter adherence and fluid accumulation
- Laser marked nameplate provides worry free part identification while maintaining a smooth, undetached surface
- Standard oil seal
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The Boston Gear® 700 series stainless steel speed reducer and the new stainless steel motor are both designed to provide maximum corrosion resistance in caustic washdown environments. Blending trusted 700 series worm gearing with an innovative new exterior design, the stainless steel 700 series has been optimized to withstand the harshest washdown conditions. The new stainless steel 700 series maintains the same critical dimensions as its trusted cast iron sister series and utilizes the same gearing and shafts for easy field retrofitting and backwards compatibility.
Boston Gear® Original Domed Crown™ Right Angle Helical Worm Gear Drive, Single Reduction, Series: SS700, 40:1 Gear Ratio, 2.1 hp Input/1.7 hp Output/2 hp Motor, Quill Flange Input, Hollow Shaft Output, 7/8 in Input, 1-15/16 in Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2444 in-lb, 3-1/4 in Centre Distance, 3/16 x 3/32 in Keyway, 0.81 % Efficiency, Klubersynth UH1 6-460 Lubrication, No Base Mount, Stainless Steel, 9.2 in L x 8.61 in W x 9.25 in H
California Proposition 65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
SPECIFICATIONS
| Input Size | : | 7/8 in |
| Material | : | Stainless Steel |
| Mounting Type | : | No Base |
| Output Size | : | 1-15/16 in |
| Series | : | SS700 |
| Input Type | : | Quill Flange |
| Output Type | : | Hollow Shaft |
| Gear Ratio | : | 40:1 |
| Type | : | Single Reduction |
| Dimensions | : | 9.2 in L x 8.61 in W x 9.25 in H |
| Efficiency | : | 0.81 % |
| Keyway Size | : | 3/16 x 3/32 in |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | Klubersynth UH1 6-460 |
| Centre Distance | : | 3-1/4 in |
| Horsepower | : | 2.1 hp Input/1.7 hp Output/2 hp Motor |
| Output Maximum Speed | : | 43.8 rpm |
| Torque Rating | : | 2444 in-lb |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_71010G_Specification_Sheet.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_71020J_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_SSF71810KB5HS1_Catalog.pdf
