DUJ-SS3000x1500K

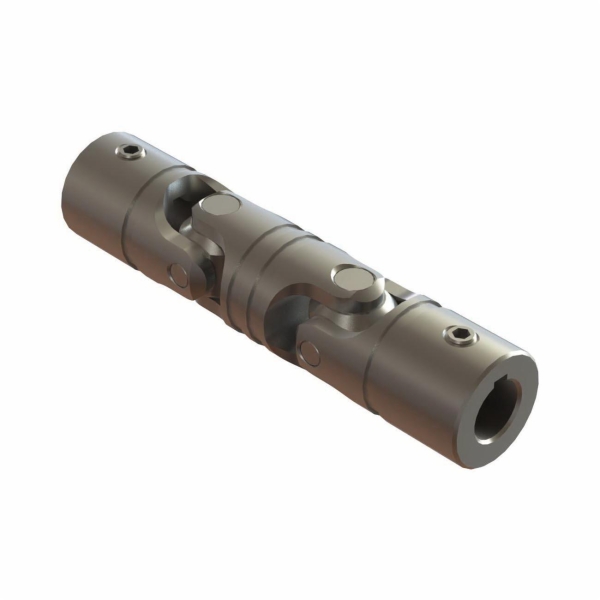

Belden Universal DUJ-SS3000x1500K Pin and Block Finished Bore Double Universal Joint With 3/8 x 3/16 in Keyway, 3000, 1-1/2 in Bore, Stainless Steel
- CP#:
- Item#: DUJ-SS3000X1500K
- Mfr#: DUJ-SS3000x1500K
- Achieves higher operating angles than single joints (up to 90 deg)
- Provides added length but more compact than drive shafts
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The Belden® double universal joint provides the same reliability and service life as the single universal joint with a maximum combined working angle of 90 deg. Double universal joints provide accurate positioning and flexibility under higher operating angles. They are available in a wide variety of materials and finishes. Lubricant retaining boots are recommended for operation in corrosive environments.
Belden Universal Double Universal Joint, Pin and Block Finished Bore, 3000 Size, 1-1/2 in Bore, 3 in Diameter Joint, 7200 in-lb Torque, 14 in Overall Length, 90 deg Maximum Misalignment Angle, Stainless Steel
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Belden_1000_BOOT_Catalog.pdf
