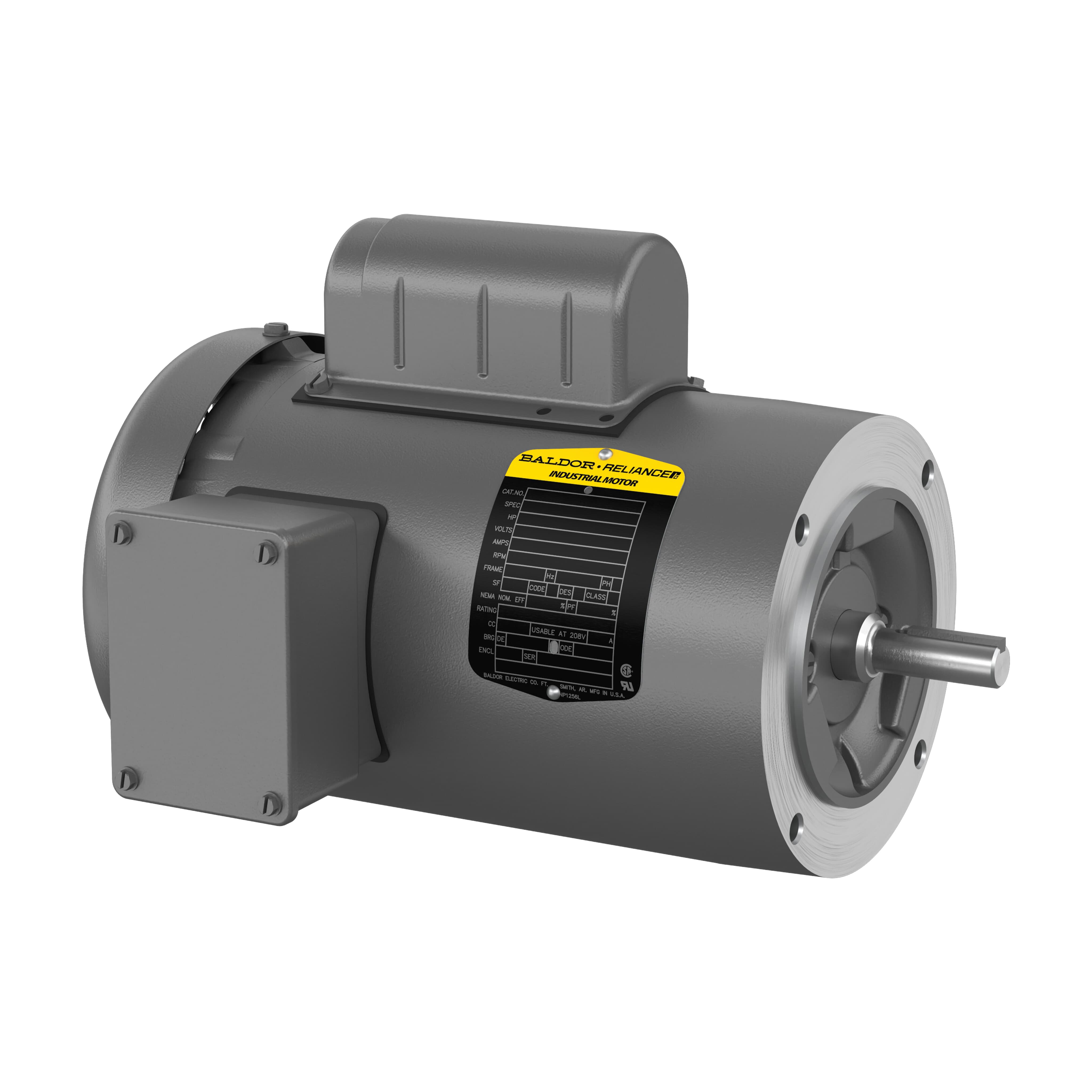

- Baldor-Reliance VL3515
VL3515
BALDOR
- CP#:
- Item#: VL3515
- Mfr#: VL3515
- UPC: 78156810917
- Low noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design provides optimized torque profiles
- Robust heavy gauge steel design
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
1-phase and 3-phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of general purpose motors are available in wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.
2 HP, 3600 RPM, Single Phase, 115/208-230V, 60HZ, TEFC, 56C, F1
SPECIFICATIONS
| Horsepower | : | 2 hp |
| Torque Rating | : | 3 ft-lb |
| Number of Speeds | : | 1 |
| Material | : | Steel |
| Amperage Rating | : | 23/12/11.5 A |
| Type | : | Type 3535L Continuous Duty |
| Shaft Size | : | 5/8 in |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | 40 to 76 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 14.12 in L x 9.89 in W |
| Rotation | : | Reversible |
| Application Type | : | General Purpose AC Motors, Fan and Blower Motors |
| Special Features | : | Continuous Duty Motor |
| AC Voltage | : | 115/208-230 VAC |
| Phase | : | 1 |
| Frame | : | 56C |
| Speed | : | 3450 rpm |
| Mounting Type | : | C-Face/Footless/F1 |
| Enclosure Type | : | TEFC/NEMA L |
DOCUMENTS
-
Information Packet
https://www.baldor.com/api/products/VL3515/infopacket
