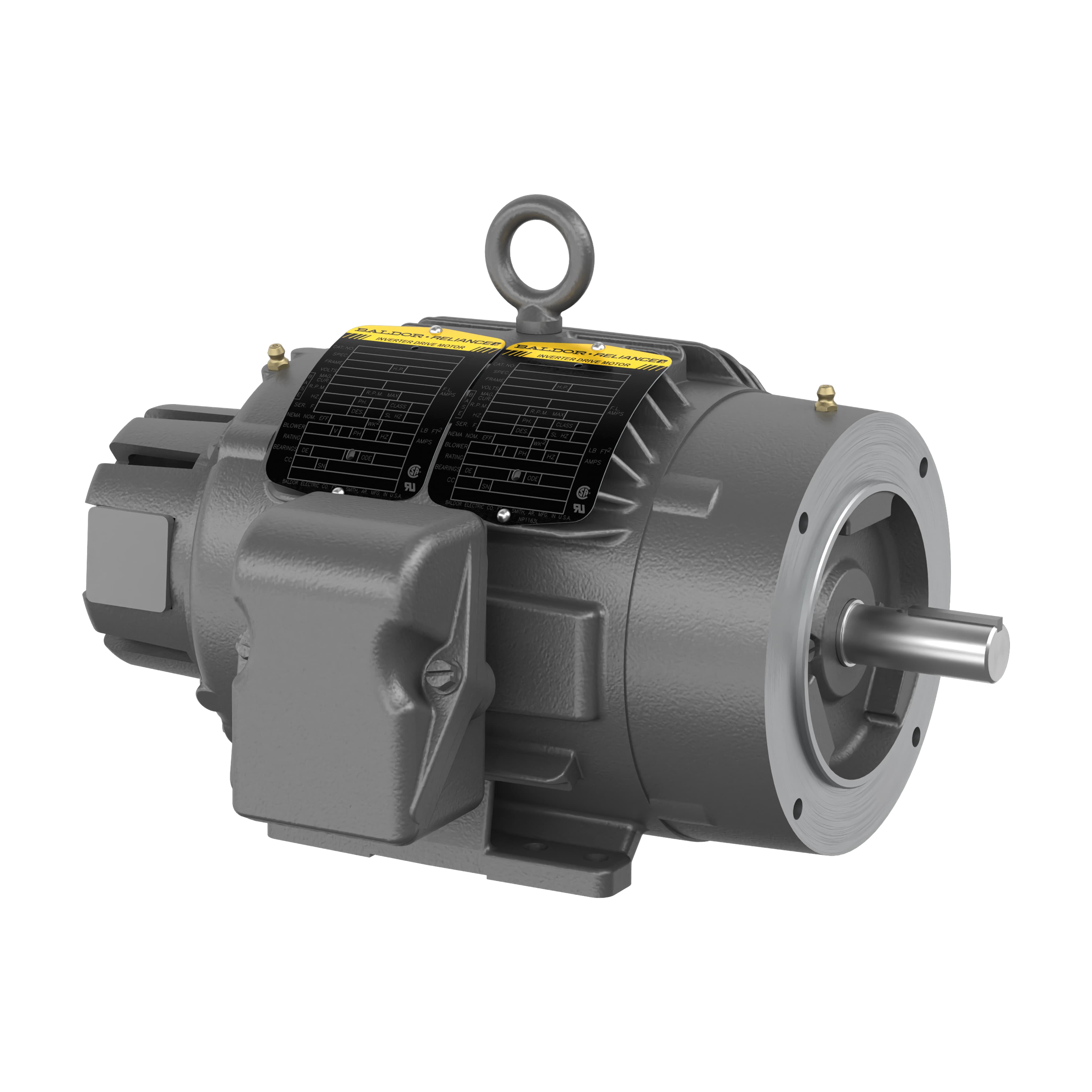

IDNM3584T
BALDOR
- CP#:
- Item#: IDNM3584T
- Mfr#: IDNM3584T
- UPC: 78156814478
- NEMA Premium® efficient design
- Suitable for sine wave operation
- In-line blower for 1000:1 constant torque
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Baldor-Reliance variable speed motors are specifically designed for variable speed control. The platform provides constant torque across the entire operating speed range in traditional NEMA and IEC designs or a power dense laminated steel square frame. Controlling a motor with variable frequency power has never been easier when using a Baldor-Reliance variable speed motor.
1 1/2 HP, 1800 RPM, Three Phase, 230/460V, 60HZ, TENV, 145TC, F1
SPECIFICATIONS
| Horsepower | : | 1 1/2 hp |
| Torque Rating | : | 19 ft-lb |
| Number of Speeds | : | 1 |
| Material | : | Iron |
| Amperage Rating | : | 4.2/2.1 A |
| Constant Torque Speed Range | : | 41.667 |
| Shaft Size | : | 7/8 in Dia |
| Insulation Class | : | Class H |
| Bearing Type | : | Ball |
| Temperature Rating | : | 40 to 176 deg C |
| Service Factor | : | 1 |
| Dimensions | : | 14.65 in L |
| Rotation | : | Reversible |
| Application Type | : | Compressor Motors, Fan & Blower Motors |
| Special Features | : | 0530M Motors, Direct On Line Starting Method, Vector (Inverter) Duty Motors |
| AC Voltage | : | 230/460 VAC |
| Phase | : | 3 |
| Frame | : | 145TC |
| Speed | : | 1740 rpm |
| Mounting Type | : | F-1 |
| Enclosure Type | : | TENV |
DOCUMENTS
-
Information Packet
https://www.baldor.com/api/products/IDNM3584T/infopacket
