Baldor-Reliance EM7045T-I
Baldor-Reliance

Baldor-Reliance EM7045T-I

loading
Baldor-Reliance EM7045T-I
Baldor-Reliance
Email Print

EM7045T-I

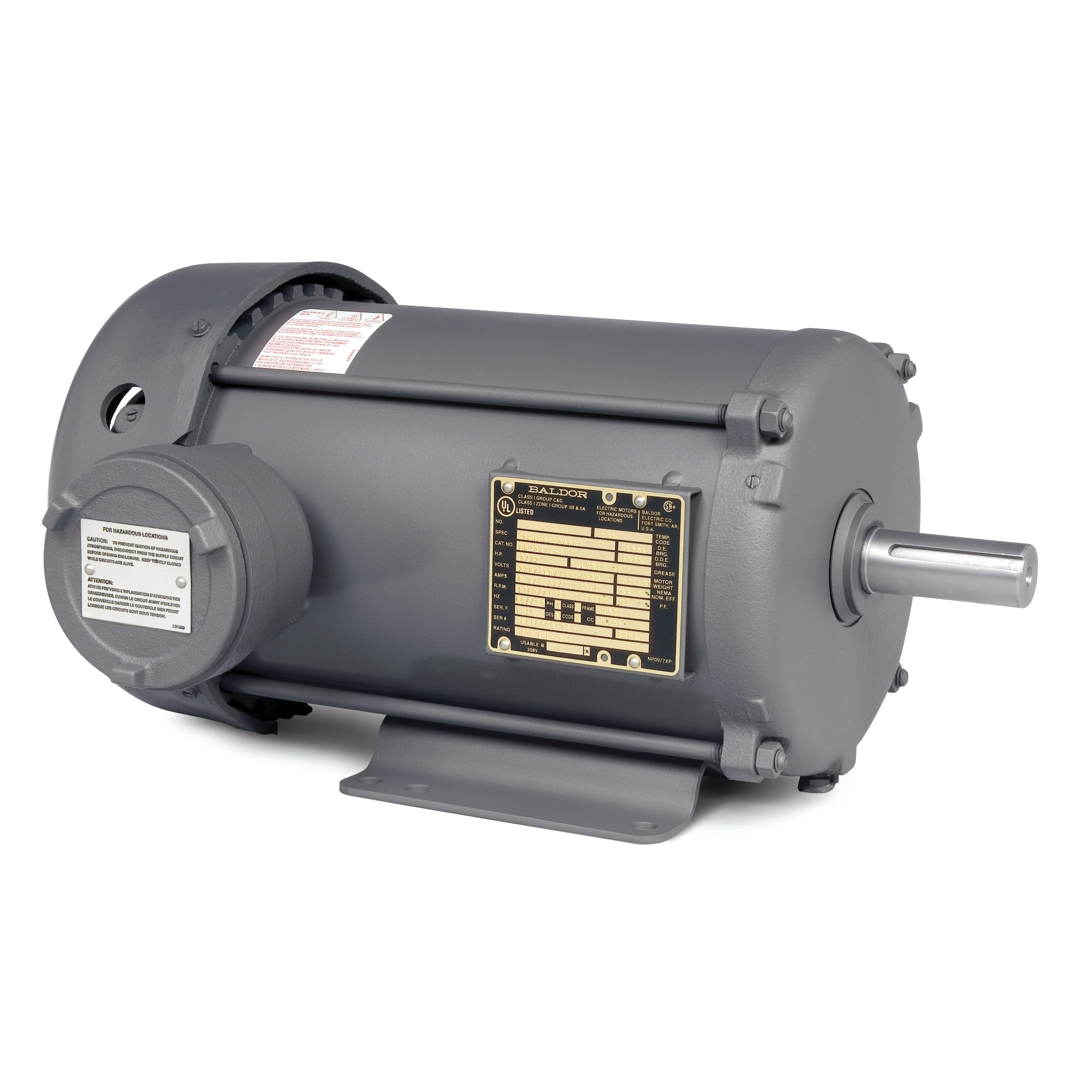

Baldor-Reliance EM7045T-I Continuous/Drill Rig Duty Type 3728M AC Motor, XPFC Enclosure, 5/7.5 hp, 190/208/230/380/460 VAC, 50/60 Hz, 3 ph Phase, 213T Frame, 3520/2930 rpm Speed, Foot Rigid Mount

  • Item#: EM7045T-I-P01
  • Mfr#: EM7045T-I
  • UPC: 781568604601
    • Drive end shaft slinger, UL breather drains
    • Normally closed thermostats
    • Threaded lead inlet
    • IP55 enclosure, marked on nameplate
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

Baldor-Reliance AC Motor, Continuous/Drill Rig Duty Type 3728M, General Purpose AC Motors Application, 5/7.5 hp, 190/208/230/380/460 VAC, 15.4/19.4/18/7.7/9 A, 50/60 Hz Frequency, 3 ph ph, 3520/2930 rpm Speed, 1 Speed, XPFC Enclosure, 213T Frame, 1-3/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Sealed Bearing, 10.9 ft-lb Torque, Foot Rigid Mounting, 40 deg C, Insulation Class: Class F, Steel, 19.57 in L x 14.13 in W x 12.03 in H Dimensions

SPECIFICATIONS

Horsepower      :      5/7.5 hp
Frequency      :      50/60 Hz
Torque Rating      :      10.9 ft-lb
Number of Speeds      :      1
Material      :      Steel
Amperage Rating      :      15.4/19.4/18/7.7/9 A
Type      :      Continuous/Drill Rig Duty Type 3728M
Shaft Size      :      1-3/8 in
Insulation Class      :      Class F
Bearing Type      :      Sealed
Temperature Rating      :      40 deg C
Service Factor      :      1.15
Dimensions      :      19.57 in L x 14.13 in W x 12.03 in H
Rotation      :      Reversible
Application Type      :      General Purpose AC Motors
AC Voltage      :      190/208/230/380/460 VAC
Phase      :      3
Frame      :      213T
Speed      :      3520/2930 rpm
Mounting Type      :      Foot Rigid
Enclosure Type      :      XPFC

DOCUMENTS

  • pdf
    Technical Drawing     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/107/Baldor_Reliance_EM7045T_I_Technical_Drawing.pdf
  • pdf
    Document 3     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/145/IDW_DOCUMENT_3e6c67148082f46e68d15bc53bc79c2559e503fc878856f1c58218ac0bae9dc3.pdf
  • pdf
    Line Drawing     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/221/Baldor_Reliance_EM7045T_I_Line_Drawing.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/236/Baldor_Reliance_EJM3559_Catalog.pdf
  • pdf
    Document 1     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/387/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
