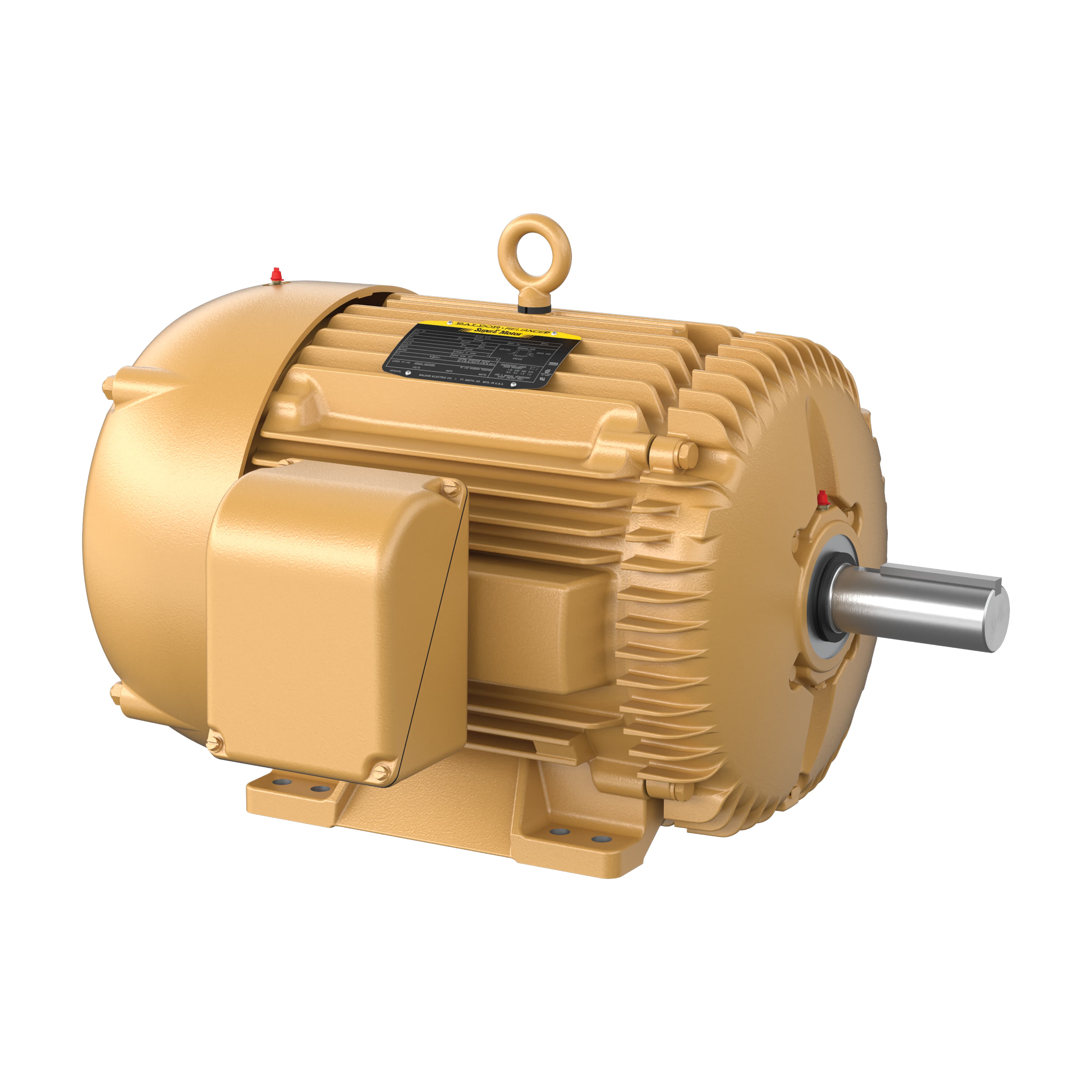

EM4110T-G
BALDOR
- CP#:
- Item#: EM4110T-G
- Mfr#: EM4110T-G
- UPC: 78156854718
- Class H insulation for increased protection on inverter use
- Internal grounding ring for bearing current mitigation on DE retainer ring
- Suitable for inverter use per NEMA MG1 part 31.4.4.2
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Baldor-Reliance HVAC motors are specifically engineered with industry-driven designs to keep your air handling systems running smoothly, quietly, and efficiently, which means better system reliability and performance, with less maintenance.
40 HP, 1800 RPM, Three Phase, 230/460V, 60HZ, TEFC, 324T, F1
SPECIFICATIONS
| Horsepower | : | 40 hp |
| Torque Rating | : | 386 ft-lb |
| Number of Speeds | : | 1 |
| Material | : | Iron |
| Amperage Rating | : | 102/96/48 A |
| Type | : | Type 4060M Continuous Duty Direct On Line |
| Shaft Size | : | 2-1/8 in |
| Insulation Class | : | Class H |
| Bearing Type | : | Ball |
| Temperature Rating | : | 40 to 76 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 30.28 in L x 23.05 in W x 19.47 in H |
| Rotation | : | Reversible |
| Application Type | : | General Purpose AC Motors, Fan & Blower Motors, Unit Handling Motors, General Purpose HVAC Motors |
| Special Features | : | Shaft Grounding Motors |
| AC Voltage | : | 230/460 VAC |
| Phase | : | 3 |
| Frame | : | 324T |
| Speed | : | 1775 rpm |
| Mounting Type | : | Foot Rigid |
| Enclosure Type | : | OPSB |
DOCUMENTS
-
Information Packet
https://www.baldor.com/api/products/EM4110T-G/infopacket
