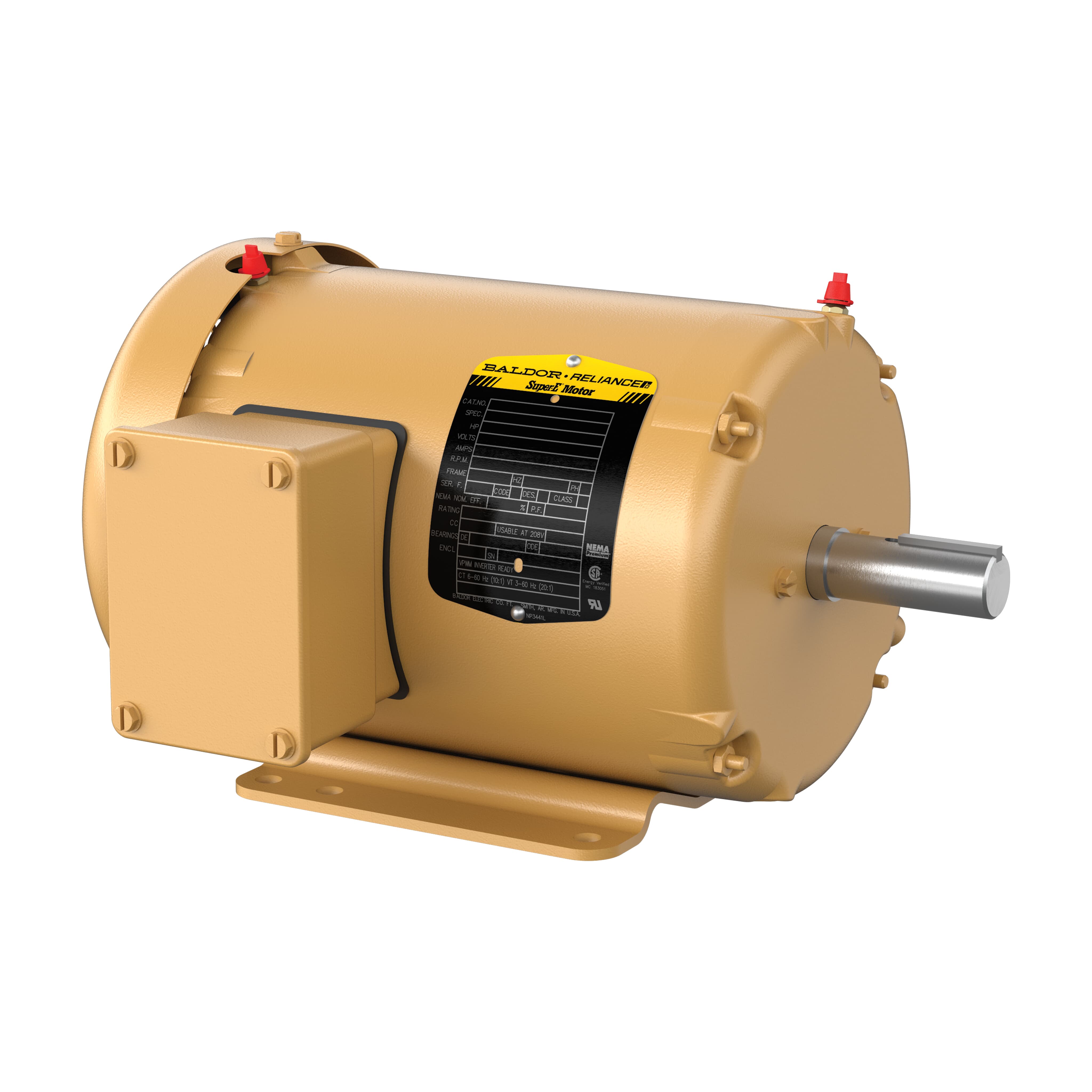

EM3554T-5G
BALDOR
- CP#:
- Item#: EM3554T-5G
- Mfr#: EM3554T-5G
- UPC: 78156866627
- Class H insulation for increased protection on inverter use
- Internal grounding ring for bearing current mitigation on DE retainer ring
- Designed for longevity
- Suitable for inverter use
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Baldor-Reliance HVAC motors are specifically engineered with industry-driven designs to keep your air handling systems running smoothly, quietly and efficiently, which means better system reliability and performance, with less maintenance.
1 1/2 HP, 1800 RPM, Three Phase, 575V, 60HZ, TEFC, 145T, F1
SPECIFICATIONS
| Horsepower | : | 1 1/2 hp |
| Torque Rating | : | 4.47 ft-lb |
| Number of Speeds | : | 1 |
| Material | : | Steel |
| Amperage Rating | : | 1.8 A |
| Type | : | Continuous Duty Type 3526M |
| Shaft Size | : | 7/8 in |
| Insulation Class | : | Class H |
| Bearing Type | : | Ball |
| Temperature Rating | : | 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 13.31 in L x 10.25 in W |
| Rotation | : | Reversible |
| Application Type | : | General Purpose AC Motors, Fan & Blower Motors, Unit Handling Motors, General Purpose HVAC Motors |
| AC Voltage | : | 575 VAC |
| Phase | : | 3 |
| Frame | : | 145T |
| Speed | : | 1760 rpm |
| Mounting Type | : | Foot Rigid |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Information Packet
https://www.baldor.com/api/products/EM3554T-5G/infopacket
