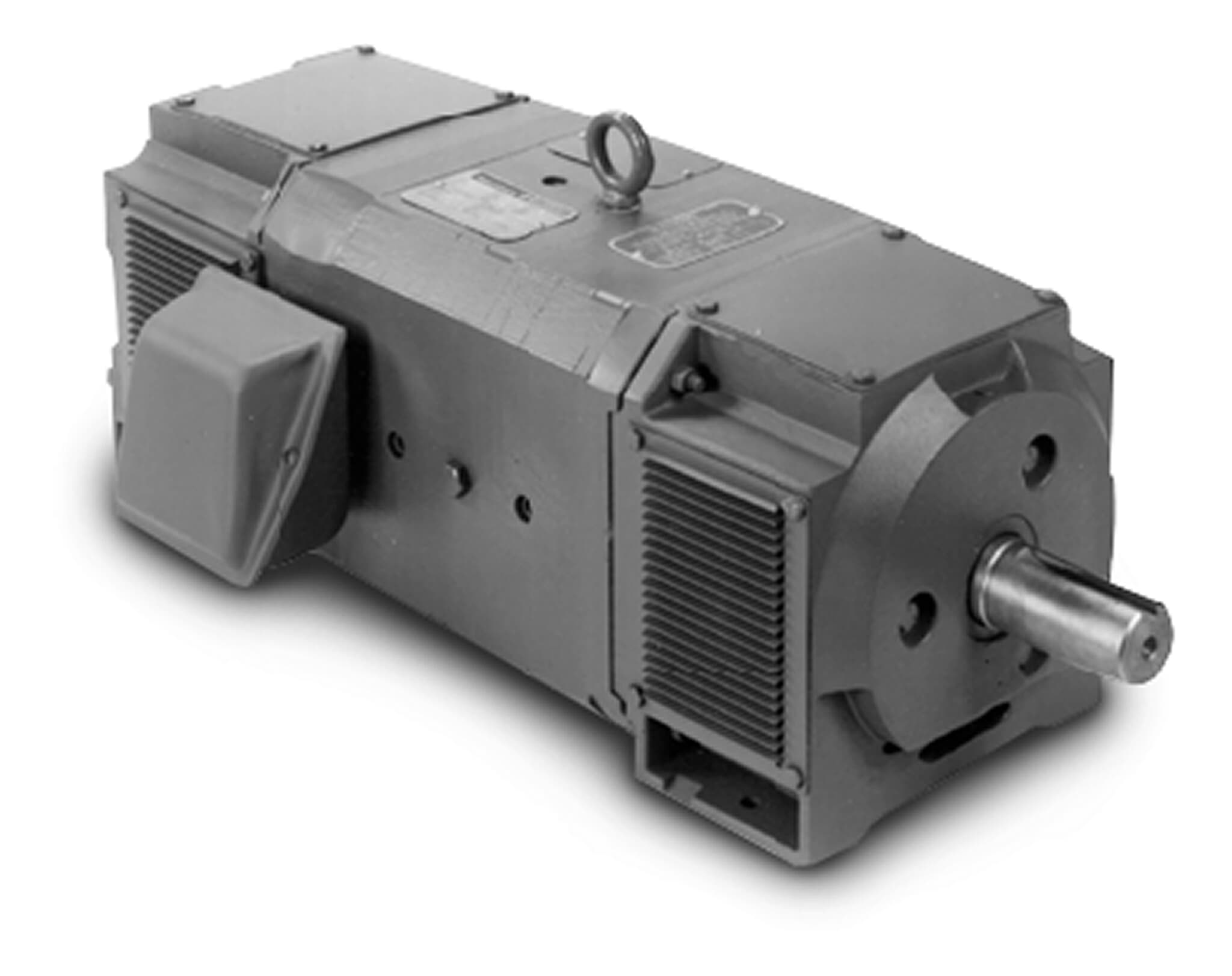

D5025R

BALDOR

  • Item#: D5025R
  • Mfr#: D5025R
  • UPC: 78156846282
    • Unique laminated square frame for improved commutation on rectified power supplies
    • The square configuration allows for increased rating per frame size
    • High limit thermostat
    • Provision for adding adapter mounted feedback device
    • Service line brushes with convenient wear indicating reference lines
    • PLS™ (Positive lubrication System) for longer bearing and motor life
    • 43 A armature, 2.63 A field current rating
    • 500 VDC armature, 300 VDC field voltage rating
    • Without drip cover
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

25 Hp, 1750 RPM, 500 V ARM, 300 V FIELD, DP, LC2113ATZ, F1

SPECIFICATIONS

Horsepower      :      25 hp
Insulation Class      :      Class F
Dimensions      :      34-3/4 in L
Special Features      :      Continuous Duty Motor, RPM III Shunt Wound Field Motor, Stabilized Shunt Field Winding
Application Type      :      SCR Drive Motor
Bearing Type      :      50BC03J30X Ball
Service Factor      :      1
Rotation      :      Reversible
Mounting Type      :      F-1
Enclosure Type      :      DPG
Temperature Rating      :      40 deg C
Shaft Size      :      1-7/8 in
Amperage Rating      :      2.63/43 A
Frame      :      2113ATZ
Speed      :      1750 rpm
