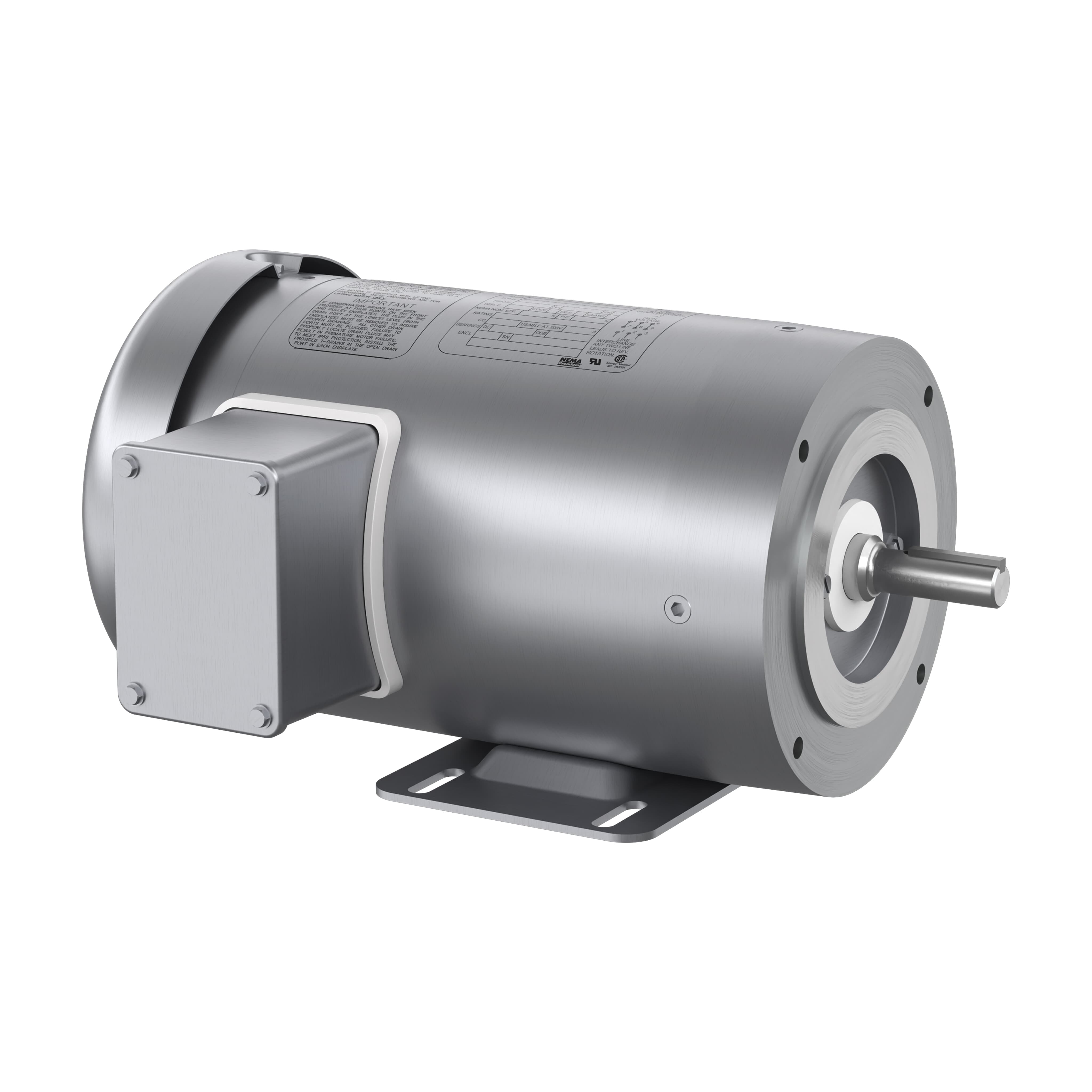

- Baldor-Reliance CESSWDM3554
CESSWDM3554
BALDOR
- CP#:
- Item#: CESSWDM3554
- Mfr#: CESSWDM3554
- UPC: 78156877829
- Four condensate drains in each endplate
- Endplate rabbets sealed
- Labyrinth seals on drive end and opposite drive end
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Baldor-Reliance washdown duty motors are designed to meet the demands of applications that require additional protection from contaminants and the ability to operate in an environments exposed to washdown methods. As the broadest washdown product family in the marketplace, Baldor offers motors from painted to stainless steel to meet the washdown needs of our customers.
1 1/2 HP, 1800 RPM, Three Phase, 230/460V, 60HZ, TEFC, 56C, F1
SPECIFICATIONS
| Horsepower | : | 1 1/2 hp |
| Torque Rating | : | 4.47 ft-lb |
| Number of Speeds | : | 1 |
| Material | : | Stainless Steel |
| Amperage Rating | : | 4.5/4.4/2.2 A |
| Type | : | Continuous Duty Type 3526M |
| Shaft Size | : | 5/8 in |
| Insulation Class | : | Class F |
| Bearing Type | : | Sealed |
| Temperature Rating | : | 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 13.34 in L |
| Rotation | : | Reversible |
| Application Type | : | Sewage & Wastewater Pump Motors |
| Special Features | : | Washdown Duty Motors |
| AC Voltage | : | 230/460 VAC |
| Phase | : | 3 |
| Frame | : | 56C |
| Speed | : | 1760 rpm |
| Mounting Type | : | C-Face/Rigid Base |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Information Packet
https://www.baldor.com/api/products/CESSWDM3554/infopacket
