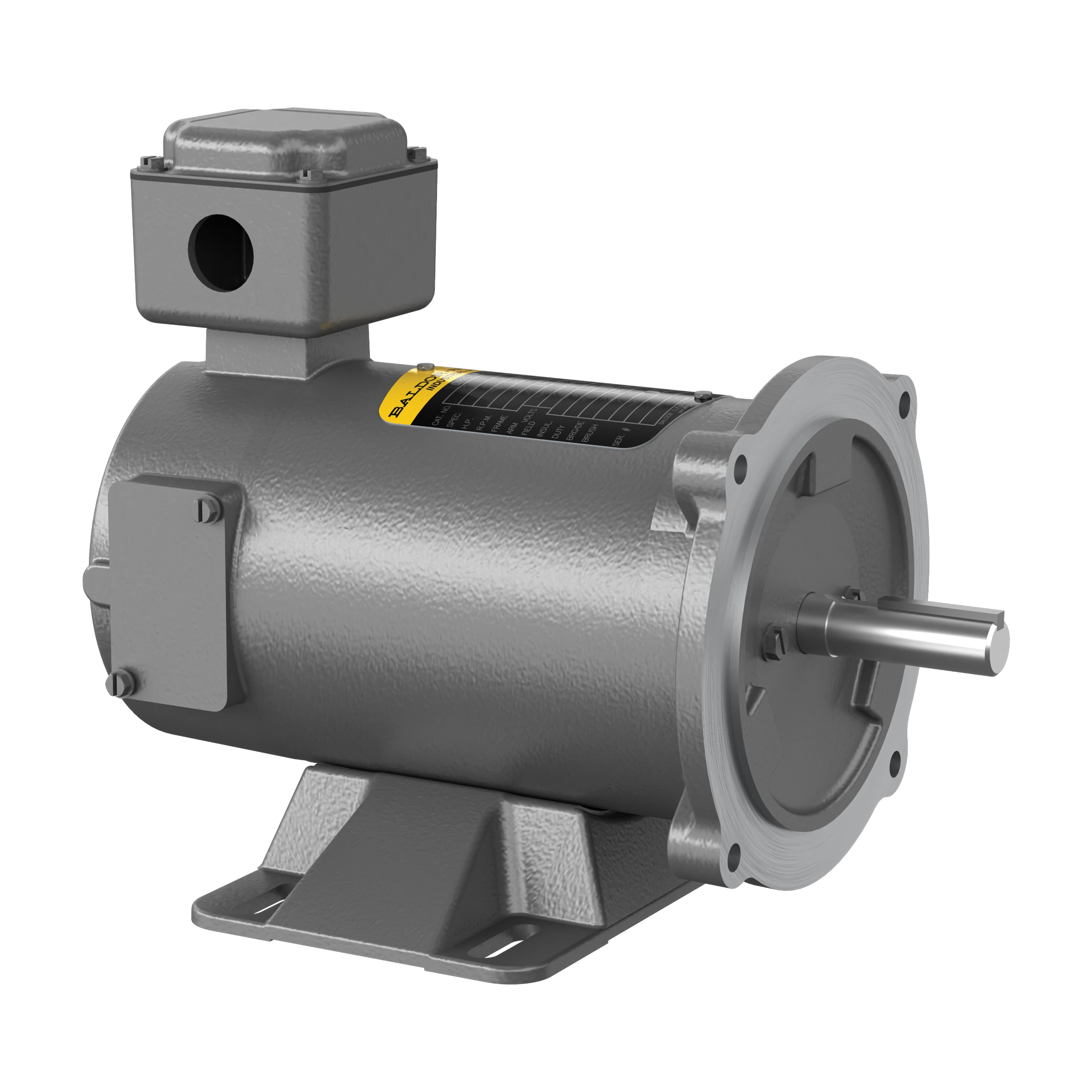

CDP3330
BALDOR
- CP#:
- Item#: CDP3330
- Mfr#: CDP3330
- UPC: 78156812442
- NEMA C-face with removable base
- Tachometer adaptable
- Double sealed bearings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Available in round frame and unique laminated square frames, Baldor-Reliance DC motors offer performance and reliability in tough applications. Round frame DC motors utilize permanent magnet technology optimizing the commutator, brushes, and inertia to assure the best performance possible. Wound field motors are designed with superior commutation through the speed range to ensure trouble-free operation and the insulation system is designed with extra margin of safety to eliminate performance limiting hot spots.
1/2 Hp, 1750 RPM, 90 V ARM, TENV, 56C, F1
SPECIFICATIONS
| Horsepower | : | 1/2 hp |
| Insulation Class | : | Class F |
| Dimensions | : | 14.94 in L |
| Special Features | : | 20:1 Constant Torque Speed Range, Permanent Magnet DC Motors |
| Material | : | Steel |
| Bearing Type | : | Sealed |
| Service Factor | : | 1 |
| Rotation | : | Reversible |
| Mounting Type | : | F-1 |
| Enclosure Type | : | TENV |
| Temperature Rating | : | 40 to 176 deg C |
| Type | : | C-Face Continuous Duty Fractional |
| Shaft Size | : | 5/8 in Dia |
| Torque Rating | : | 3 ft-lb |
| Amperage Rating | : | 4.8 A |
| Frame | : | 56C |
| Speed | : | 1750 rpm |
DOCUMENTS
-
Information Packet
https://www.baldor.com/api/products/CDP3330/infopacket
