- Baldor-Reliance CD6219

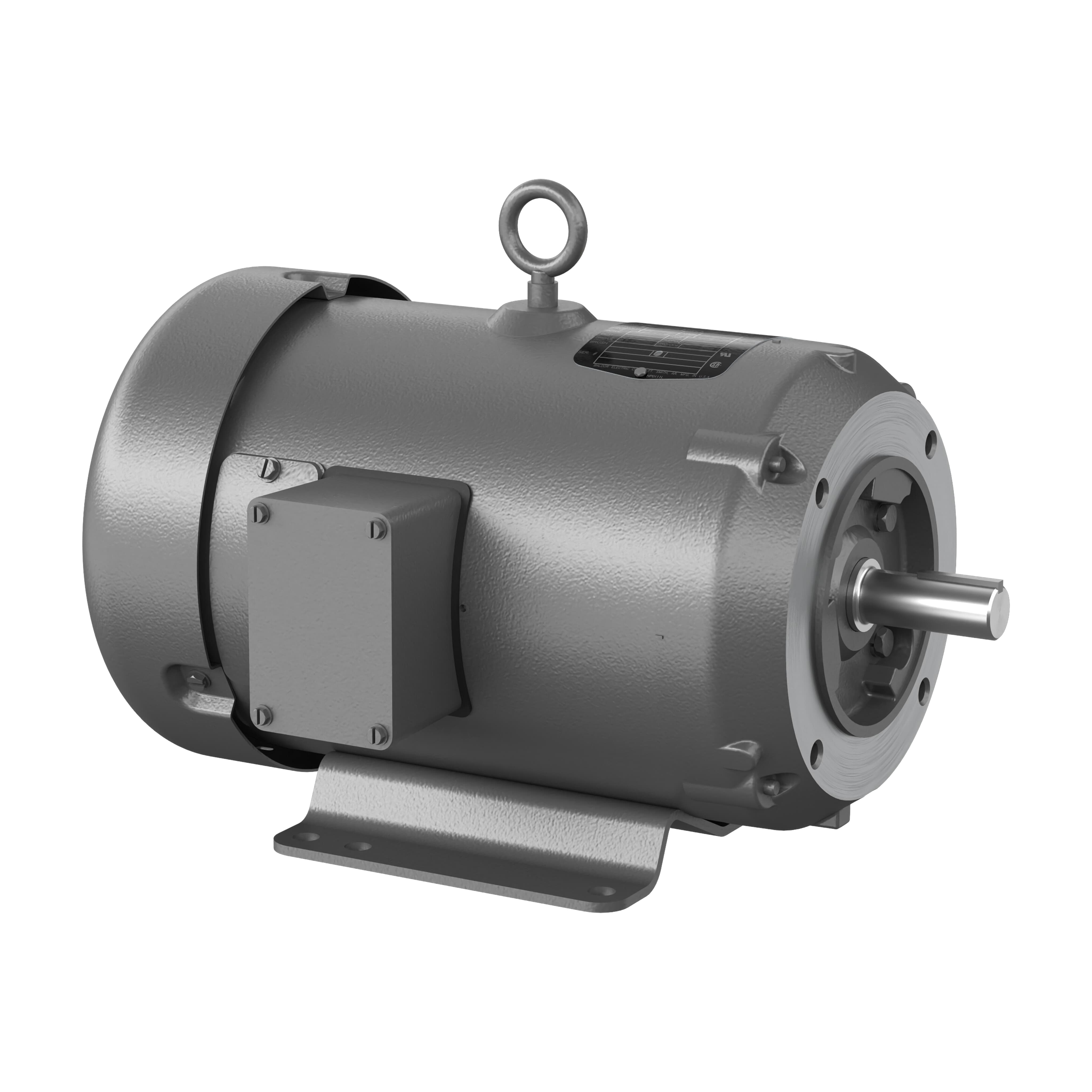

CD6219
BALDOR
- CP#:
- Item#: CD6219
- Mfr#: CD6219
- UPC: 78156812479
- Designed for use with NEMA type K SCR control
- 20:1 constant torque speed range
- NEMA C-face and removable base
- NEMA 182 frame and larger have a normally closed thermostat on the field winding
- 9.6 A armature, 0.55/1.1 A field current rating
- 90 VDC armature, 50/100 VDC field voltage rating
- Without drip cover
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
1 Hp, 1750 RPM, 90 V ARM, 100/50 V FIELD, TEFC, 184C, F1
SPECIFICATIONS
| Horsepower | : | 1 hp |
| Insulation Class | : | Class F |
| Dimensions | : | 15.63 in L |
| Special Features | : | Continuous Duty Motor, Shunt Wound Motor |
| Application Type | : | SCR Drive Motor |
| Bearing Type | : | 6206 Sealed Ball |
| Service Factor | : | 1 |
| Rotation | : | Reversible |
| Mounting Type | : | F-1 |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
| Temperature Rating | : | 40 deg C |
| Type | : | C-Face |
| Shaft Size | : | 7/8 in |
| Amperage Rating | : | 0.55/1.1/9.6 A |
| Frame | : | 182C |
| Speed | : | 1750 rpm |
DOCUMENTS
-
Information Packet
https://www.baldor.com/api/products/CD6219/infopacket
