TST010

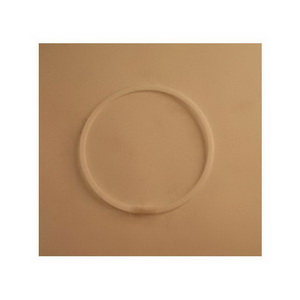

APG TST010 TST 1-Turn Split Back-Up Ring, 010 Dash Number, 0.265 in ID 0.371 in OD 0.054 to 0.052 in W, PTFE, Import

  • Item#: TST010
  • Mfr#: TST010
    • 0.005 to 0 in Gap
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

White thermoplastic fluoroethylene resin offers a combination of qualities not found in any other material-chemical inverntess, heat resistance, low friction, dielectric strength, weather ability, zero water absorption, toughness and flexibility.

APG, TST010, Back-Up Ring, 1-Turn Split, Series: TST, 0.265 in ID, 0.371 in OD, 0.054 to 0.052 in Width, 0.052 to 0.045 in Thickness, 0.053 in Cross Section, Single Turn Cross Section, 010 Dash Number, 55A Durometer, -65 to 500 deg F, PTFE, White, Import

SPECIFICATIONS

Color      :      White
Cross Section Shape      :      Single Turn
Cross Section      :      0.053 in
Durometer      :      55A
Series      :      TST
Temperature Rating      :      -65 to 500 deg F
Thickness      :      0.052 to 0.045 in
Type      :      1-Turn Split
Dash Number      :      010
Inside Diameter      :      0.265 in
Outside Diameter      :      0.371 in
Width      :      0.054 to 0.052 in
Material      :      PTFE
Domestic/Import      :      Import

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/APG_HB90004_Catalog_N.pdf
