TFE337

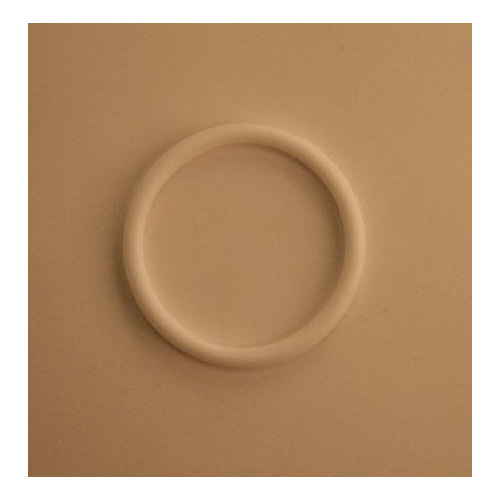

APG TFE337 TFE O-Ring, 337 Dash Number, 3 in ID 3.375 in OD, PTFE, Import
- CP#:
- Item#: TFE337
- Mfr#: TFE337
- White thermoplastic fluoroethylene resin offers a combination of qualities not found in any other material-chemical inertness, heat resistance, low friction, dielectric strength, weatherability, zero water absorption, toughness and flexibility
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
An O-Ring functions as a seal through the mechanical deformation of the elastomeric compound by mating metal surfaces. The resilient rubber conforms to the shape of the metal sections and blocks the passage of gases or liquids. If the pressure increases, the O-Ring is further deformed and provides tighter sealing.
APG, TFE337, O-Ring, Series: TFE, 3 in ID, 3.375 in OD, 3/16 in Cross Section, Round Cross Section, 337 Dash Number, Standard Hardness, -65 to 500 deg F, PTFE, White, Import
SPECIFICATIONS
| Color | : | White |
| Cross Section Shape | : | Round |
| Cross Section | : | 3/16 in |
| Hardness | : | Standard |
| Series | : | TFE |
| Temperature Rating | : | -65 to 500 deg F |
| Dash Number | : | 337 |
| Inside Diameter | : | 3 in |
| Outside Diameter | : | 3.375 in |
| Material | : | PTFE |
| Domestic/Import | : | Import |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/APG_HB90004_Catalog_N.pdf
